This image presents a detailed view of the venous drainage of the head, specifically of the facial region, as highlighted by the blue structures against the skeletal framework of the skull.
At the superior aspect of the image, near the forehead, we observe the supraorbital veins, which drain blood from the forehead and scalp. These veins are connected to the angular veins, seen near the bridge of the nose, which in turn receive blood from regions around the eyes and the root of the nose.
The infraorbital veins are visible just below the orbits, collecting blood from the lower eyelid, cheek, and upper lip area. They course towards the pterygoid plexus, which is a network of veins situated deep in the face, not visible on the surface here, that communicates with the cavernous sinus, a large collection of veins within the skull.
The superior labial veins are seen draining the upper lip, while the inferior labial veins drain the lower lip. These vessels merge into the facial vein, a major venous channel that runs a vertical course down the face. The facial vein is responsible for a significant portion of venous drainage from the superficial areas of the face.
Running approximately parallel to the facial vein are the veins of the lateral face, including the transverse facial vein, which drains the regions of the face over the parotid gland, an area not distinctly visible in this representation.
It’s important to note that the venous anatomy can be quite variable and anastomoses between these veins provide collateral pathways for blood to return to the heart. These veins ultimately drain into the internal jugular veins, the primary vessels that carry blood from the head and neck back to the heart, although they are not depicted in this image.
In this side view, we see additional details of the venous drainage of the head and neck not visible in the previous frontal view.
Prominently, we have the external jugular vein visible as it descends over the sternocleidomastoid muscle. This vein drains the scalp and deep parts of the face, receiving blood from smaller veins such as the posterior auricular vein, which drains the region behind the ear, and the retromandibular vein, which is formed by the union of the superficial temporal vein and maxillary vein.
The superficial temporal vein is also visible here, coursing superiorly to the external ear, draining portions of the scalp. Below the external jugular vein, we can see the subclavian vein, into which the external jugular vein often drains. The subclavian vein runs under the clavicle and is a major conduit for blood returning to the heart from the upper extremities and head.
The occipital vein is shown near the back of the skull, which drains the posterior scalp and communicates with the vertebral venous plexus. This network of veins lies within the vertebral canal and is not clearly depicted here.
This lateral perspective also provides a view of the internal jugular vein, which is a larger, deeper vein that runs medial to the sternocleidomastoid muscle and carries a significant volume of venous blood from the brain, the superficial face, and the neck back toward the heart. However, the internal jugular vein is not as clearly distinguished in this representation due to the overlap of other structures.
Understanding this venous architecture is crucial in clinical contexts, as it impacts procedures ranging from venous access for injections to the management of conditions that may affect venous return, such as thrombosis or compression.
The image depicts the thoracic cavity from an anterior view, highlighting the venous system with blue-colored vessels against the bony thorax structure.
At the top of the image, we see the brachiocephalic veins, which are formed by the union of the internal jugular and subclavian veins on each side. These veins receive blood from the head, neck, and arms, and are among the major vessels that drain into the superior vena cava, the large blue vessel in the center that carries blood back to the heart.
The superior vena cava descends vertically and enters the right atrium of the heart. It is one of the two main veins by which blood is returned from the body to the heart. This vessel is not visible in the image as it is located posterior to the bony structures of the sternum and would enter the heart below the inferior border of the image.
Also visible in the image are the intercostal veins, which run between the ribs and drain the chest wall and muscles. They connect to the azygos vein system, which is a longitudinal vessel on the right side running alongside the vertebral column and is partially visible as it ascends towards the brachiocephalic veins.
The network of veins at the base of the image represents the extensive venous plexuses that are found within the thoracic cavity. They are involved in the drainage of the thoracic and abdominal walls, and the organs contained within them. These plexuses are interconnected and eventually channel the blood into the larger systemic veins like the superior vena cava.
Understanding the venous anatomy of the thoracic cavity is crucial for procedures involving central venous access, cardiac surgeries, and managing conditions affecting venous return to the heart.
This image provides a comprehensive overview of the human venous system, depicted in blue against the skeletal system. The venous system is a network of vessels that carries deoxygenated blood from various parts of the body back to the heart.
Starting from the upper body, we see the cephalic and basilic veins in the arms, which drain blood from the radial and ulnar veins of the forearm and ascend towards the shoulder area. They merge to form the subclavian veins near the shoulders, which then join the internal jugular veins to become the brachiocephalic veins. These, in turn, feed into the superior vena cava, which carries blood from the upper half of the body into the right atrium of the heart.
The thoracic region shows the azygos vein on the right side of the vertebral column, which drains the thoracic wall and some abdominal structures into the superior vena cava. Its counterpart, the hemiazygos vein, is not visible but would be located on the left side, performing a similar function.
In the abdominal area, the image shows the inferior vena cava, the large vein that ascends along the spine and transports blood from the lower parts of the body to the heart. It receives blood from various tributaries, including the hepatic veins from the liver, the renal veins from the kidneys, and the iliac veins from the lower limbs.
The lower body highlights the great saphenous veins, which are the longest veins in the body. They run from the feet up the inside of the legs to the groin, where they drain into the femoral veins. The small saphenous veins run up the back of the calves and drain into the popliteal veins behind the knees.
The deep veins of the legs, such as the anterior and posterior tibial veins and the peroneal veins, carry blood from the feet and calves, merging into the popliteal veins and then into the femoral veins in the thigh. These join the iliac veins, which contribute to the flow into the inferior vena cava.
This extensive network is crucial for returning deoxygenated blood to the heart, where it can be reoxygenated and recirculated through the body. The veins also work against gravity, especially in the legs, and contain valves that prevent backflow, ensuring that blood travels in one direction towards the heart.
In this image, we can see the intricate network of veins interspersed among the different layers of muscle tissue in the head and neck region. The veins are depicted in blue, muscles in beige and red, and nerves in yellow.
The superficial veins are the ones closest to the skin. These include the superficial temporal vein, which drains blood from the temporal region and is seen running anteriorly to the ear. The facial vein is also visible, coursing down the face in front of the masseter muscle, the thick muscle near the jaw responsible for chewing.
Beneath these superficial veins are deeper venous structures that lie within or between the deeper muscle layers. The internal jugular vein is the predominant deep vein seen here, running deep within the neck alongside the common carotid artery and vagus nerve, forming the carotid sheath. It collects blood from the brain, the superficial parts of the face, and the neck.
Embedded within the musculature, especially around the sternocleidomastoid muscle — the prominent muscle that runs obliquely across the side of the neck — we can see the external jugular vein. It drains the scalp and deep portions of the face and neck and then descends to empty into the subclavian vein.
Further deep, the vertebral veins are visible within the transverse foramina of the cervical vertebrae. They drain the cervical spinal cord and posterior part of the skull.
These venous pathways are essential for draining deoxygenated blood from the head and neck back to the heart. They are surrounded by muscle and connective tissue, which help facilitate venous return through muscle contractions and the presence of valves within the veins to prevent backflow. The arrangement of these veins within the muscle layers also provides a protective mechanism, safeguarding these vessels from external injury.
The image showcases the venous structure of the lower limb, specifically the leg, with veins highlighted in blue.
We can see the great saphenous vein, the longest vein in the body, which originates from the medial side of the dorsal venous arch in the foot. It ascends along the medial aspect of the leg, running just anterior to the medial malleolus (the bony prominence on the inner side of the ankle), and continues along the medial side of the thigh to eventually drain into the femoral vein in the groin.
Branching from the great saphenous vein are various superficial tributaries that drain the skin and subcutaneous tissues of the leg. These tributaries are visible as they traverse the surface of the muscles and subcutaneous fat.
In the lower part of the leg, we can observe the small saphenous vein, which runs along the posterior aspect of the leg. It begins at the lateral side of the dorsal venous arch, ascends behind the lateral malleolus (the bony prominence on the outer side of the ankle), and travels up the posterior aspect of the calf to drain into the popliteal vein behind the knee.
Also depicted in the image are several unnamed tributary veins that interconnect the superficial and deep venous systems. These perforating veins pass through the deep fascia of the leg, allowing blood to flow from the superficial veins into the deep veins.
The deep veins of the leg, which are typically paired with arteries and are not as clearly visible in this image, run within the muscular compartments and are crucial for returning blood from the lower extremity back to the heart. These deep veins include the anterior and posterior tibial veins, as well as the peroneal veins, which are nestled between the muscles and converge to form the popliteal vein in the knee region.
The venous network in the legs is particularly important because it must work against gravity to return blood to the heart. The veins in the lower limbs are equipped with valves that prevent the backflow of blood, and the muscle contractions in the leg help to pump the blood upwards. This is essential for maintaining proper circulation and preventing venous insufficiency.
The image displays the venous network of the forearm and hand. In this depiction, the veins are colored blue, providing a stark contrast against the muscles and tendons of the arm.
Starting proximally, near the elbow, we can identify the cephalic vein on the lateral side of the forearm. This vein is a superficial vein that arises from the dorsal venous network of the hand and ascends along the radial side of the forearm. It is frequently used for intravenous access or blood withdrawal.
On the medial side of the forearm, the basilic vein can be observed. It also originates from the dorsal venous network of the hand and ascends along the ulnar side. The basilic vein is larger and deeper than the cephalic vein as it progresses up the arm.
Connecting the cephalic and basilic veins is the median cubital vein, which is often visible just below the surface of the skin in the cubital fossa, an area on the anterior side of the elbow. This vein is commonly used for venipuncture due to its accessibility.
As we move distally towards the wrist and hand, we see the dorsal venous network of the hand. This network is a superficial system that drains blood from the back of the hand. It gives rise to the cephalic and basilic veins and is interconnected with the deeper venous system of the hand, which is not clearly visible in this image.
The deep veins of the forearm, which accompany the arteries, are not distinctly shown here but would lie deeper within the musculature. They form venae comitantes (paired veins) with the radial and ulnar arteries and are responsible for the majority of venous return from the hand and forearm.
The venous anatomy of the forearm and hand is crucial not only for venous return but also for medical procedures involving venous access, and understanding these pathways is essential for clinicians.
This image presents a view of the venous network surrounding the pelvis and the upper legs, with the veins depicted in blue against the backdrop of the skeletal structure.
The largest and central vein visible is the inferior vena cava, which ascends along the spine to carry deoxygenated blood from the lower body back to the heart. Emerging from the top of the pelvis and joining the inferior vena cava are the common iliac veins, which are formed by the convergence of the internal and external iliac veins on each side of the body.
The internal iliac veins drain blood from the pelvic organs, while the external iliac veins continue from the femoral veins in the thigh, which in turn receive blood from the deep veins of the leg, like the popliteal vein seen behind the knee, as well as the great saphenous vein, the longest vein in the body.
This network also shows the superficial veins that drain the lower abdomen and pelvis, such as the superficial epigastric veins, which arise near the groin area. The deep venous network, which includes the femoral veins, is responsible for the majority of venous return from the lower extremities, carrying blood from the deep tissues and muscles of the legs.
The veins in this region are essential for returning blood from the lower extremities, and they also play a role in draining the organs within the pelvis. The presence of bony landmarks, such as the pelvis and the vertebral column, provides a point of reference for medical professionals when navigating these vascular structures during interventions.
The image displays the venous drainage system of the brain superimposed on a model of the brain’s exterior. The veins are depicted in blue, contrasting against the white of the brain’s surface, or cortex.
The most prominent features are the superficial cerebral veins, which drain blood from the cortex into the larger venous sinuses. These include the superior cerebral veins, which run across the surface of the hemispheres and drain into the superior sagittal sinus, a large venous channel that runs along the top midline of the skull.
The image also shows the superficial middle cerebral vein, which courses along the lateral surface of the brain, following the Sylvian fissure. It often drains into the cavernous sinus or the superior sagittal sinus.
Inferiorly, we can see the inferior cerebral veins, which drain the undersurface of the brain and empty into the tentorial sinuses or straight sinus, another dural venous sinus.
The deep venous drainage is not visible in this image, but it would include the internal cerebral veins, the basal veins, and the great cerebral vein, all of which converge on the vein of Galen before emptying into the straight sinus.
The venous system of the brain is critical as it is responsible for draining deoxygenated blood, along with metabolic waste products, away from the brain to be reoxygenated in the lungs. The efficiency of this venous system is vital for the brain’s function and overall health. Inadequate drainage can lead to increased intracranial pressure and associated complications.
The image is a schematic diagram of the human venous system, with key veins labeled to illustrate how blood is returned from various parts of the body to the heart. It is a simplified representation that highlights the major veins and their anatomical courses.
At the top of the diagram, the internal jugular vein is shown, which drains the brain and deep parts of the face and neck. It merges with the subclavian vein, coming from the arm, to form the brachiocephalic vein. The brachiocephalic veins from both sides of the body then join to form the superior vena cava, which empties into the right atrium of the heart.
The cephalic vein, a superficial vein on the lateral side of the arm, is also indicated. It eventually drains into the subclavian vein.
The diagram also shows the axillary vein, which continues from the subclavian vein and receives blood from the arm and shoulder region.
The inferior vena cava is presented as the large vertical vein running posteriorly from the lower body to the heart. It collects blood from the legs via the common iliac veins, which are formed by the confluence of the internal and external iliac veins. The renal veins, draining the kidneys, are shown connecting to the inferior vena cava as well.
The great saphenous vein is illustrated running along the length of the leg, from the foot to the groin, where it drains into the femoral vein. The femoral vein then becomes the external iliac vein, which contributes to the common iliac vein.
In the lower leg, the anterior tibial vein and fibular (peroneal) vein are labeled, indicating the deep venous drainage of the lower leg.
This diagram serves as an educational tool to understand the major pathways through which deoxygenated blood travels back to the heart. It shows the hierarchical structure of the venous system, from smaller superficial veins to larger deep veins, culminating in the superior and inferior venae cavae.
This image is a cross-sectional view of a vein, illustrating its structural layers and components.
Starting from the innermost layer, we see the endothelium, which is the thin layer of cells that lines the interior surface of the vein. This layer provides a smooth surface for blood to flow over and plays a role in regulating vascular function.
The next layer is the tunica intima, a thin layer composed of the endothelium and a subendothelial layer made up of a thin layer of connective tissue. This layer is in direct contact with the blood flowing through the vein.
Surrounding the tunica intima is the tunica media, which in veins is typically thin and composed of a few layers of smooth muscle cells and connective tissue. The tunica media’s smooth muscle allows for the regulation of the vein’s diameter under the control of the autonomic nervous system.
The outermost layer is the tunica adventitia, which is composed of connective tissue containing collagen and elastic fibers. This layer provides structural support and flexibility to the vein, allowing it to withstand changes in pressure and volume.
Also highlighted in the image is a venous valve, which is essential for the proper functioning of veins, especially in the limbs. These valves are formed from folds of the tunica intima and ensure one-way blood flow back to the heart, preventing backflow and aiding venous return against gravity.
Lastly, the image shows fibrous tissue, which provides structural integrity to the vessel and connects it with surrounding tissues, helping to anchor the vein in place.
This detailed view of the venous wall and valve is fundamental for understanding how veins maintain blood flow toward the heart, particularly in the lower extremities where blood must be transported against the force of gravity. Venous valves are key in preventing conditions such as varicose veins and venous insufficiency.

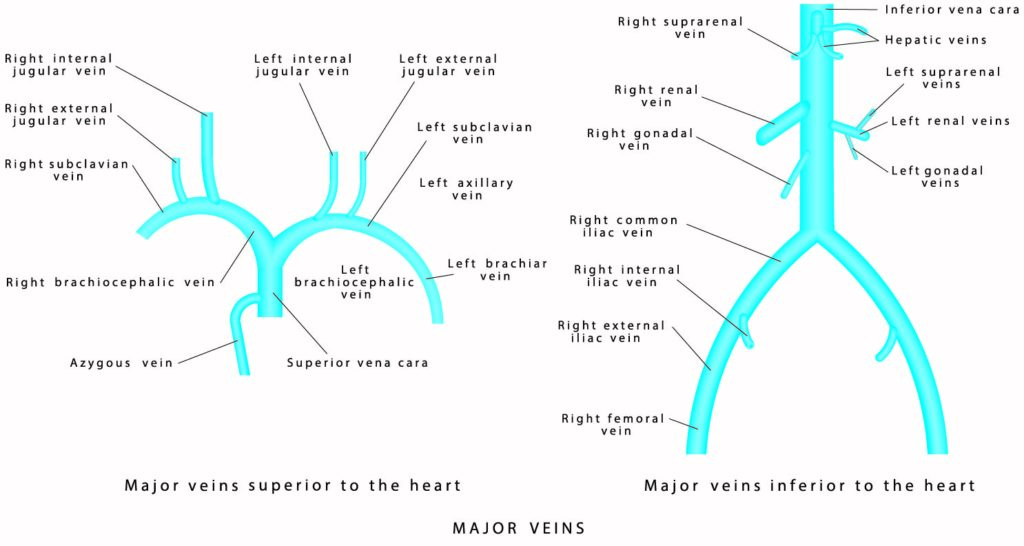

The image is a simplified schematic of the major veins located superior to the heart, detailing how venous blood is channeled back to the heart from the head, neck, arms, and thorax.
Central to this diagram is the superior vena cava, a large, blue, vertically oriented vessel that transports deoxygenated blood from the upper body into the right atrium of the heart.
To the left and right of the superior vena cava are the left and right brachiocephalic veins, respectively. These veins are formed by the convergence of two major veins: the internal jugular vein, which drains the brain and the deep portions of the face and neck, and the subclavian vein, which receives blood from the arm through the axillary vein and, more distally, the brachial vein.
The right side of the diagram also shows the right external jugular vein, which drains the outer structures of the head and neck, and the azygos vein, which is part of the venous system of the thorax and drains into the superior vena cava.
The left side of the diagram, in addition to showing the left internal and external jugular veins, also includes the left subclavian vein and its continuations, the left axillary and brachial veins.
This diagram emphasizes the symmetric and organized nature of the venous system, which ensures efficient return of blood to the heart, and the integration of venous drainage from the bilateral upper extremities, head, and neck into the central circulation.
The image is a schematic representation of the major veins located inferior to the heart, demonstrating the pathways through which deoxygenated blood is returned to the heart from the lower body.
At the center is the inferior vena cava, the large vertical vein that carries blood from the lower part of the body back to the heart’s right atrium.
Branching off the inferior vena cava are the hepatic veins, which drain deoxygenated blood from the liver. Also shown are the left and right renal veins, which carry blood from the kidneys. The suprarenal veins, draining the adrenal glands, are also indicated on both sides, with the left draining into the left renal vein and the right directly into the inferior vena cava.
The image also includes the left and right gonadal veins, which drain the ovaries in females or the testes in males. It’s important to note that while the right gonadal vein drains directly into the inferior vena cava, the left typically drains into the left renal vein due to the asymmetry in the vascular anatomy.
Further down, the diagram shows the convergence of the internal and external iliac veins on each side to form the common iliac veins, which then join to become the inferior vena cava. The internal iliac veins drain the pelvis, while the external iliac veins continue from the femoral veins, which are the main deep veins of the thigh.
This diagram serves to provide an overview of the venous drainage from the lower extremities, pelvis, and abdominal organs, converging into the large conduit of the inferior vena cava, and emphasizes the importance of these pathways in systemic circulation.
The image illustrates two segments of veins, showcasing the function of venous valves in facilitating unidirectional blood flow towards the heart.
On the left, the vein is depicted with a series of open, functioning venous valves. These valves, shown in white, are cup-shaped structures that open to allow blood to flow towards the heart (as indicated by the upward white arrows) and close to prevent backflow (as shown by the curved arrows at the valve sites), ensuring that blood continues in one direction despite the force of gravity or other factors that might otherwise cause it to pool in the lower extremities.
On the right, the vein appears to depict a condition known as venous insufficiency, where the valves are not functioning properly. This is indicated by the blood (red cells) pooling at certain points and the presence of reversed flow, as indicated by the downward arrows. The lack of effective valve closure allows blood to flow backward (reflux), which can lead to varicose veins, swelling, and other complications due to the increased pressure in the lower veins.
Overall, the image serves as a comparison between healthy venous function and a common venous disorder, emphasizing the importance of valve integrity in maintaining circulatory efficiency.
The image provides a visual explanation of the mechanism by which the calf muscles assist in venous blood flow in the legs, known as the “calf muscle pump.”
On the left, the image depicts the venous system of the lower leg with the deep veins highlighted in blue. The calf muscles are shown surrounding these veins, and the text indicates that these muscles act as a pump for the deep leg veins.
The central and right portions of the image give a closer view of how this pump mechanism works. In the central image, with the calf muscle relaxed, the vein is shown in a state of rest. The venous valves are open, and there is no blood flow indicated.
On the right, the calf muscle is contracted. This contraction compresses the deep veins in the leg, pushing blood upwards (as indicated by the black arrow). The venous valves, depicted in white, are shown in two states: the lower valve is closed to prevent backflow, and the upper valve is open, allowing blood to move upwards towards the heart.
This mechanism is essential for countering the effects of gravity, especially when standing or sitting for extended periods, which can cause blood to pool in the lower legs. The calf muscle pump is crucial for maintaining venous return from the lower extremities and for overall circulatory health.
The image is an anatomical illustration of the venous system of the lower leg and foot, detailing various veins and their interconnections.
At the top, the vein of Giacomini is a superficial vein that connects the great saphenous vein to the lesser saphenous vein, providing an alternative channel for venous blood.
The great saphenous vein is the longest vein in the body and is shown running along the medial (inner) aspect of the lower leg. It starts from the dorsal venous arch in the foot and extends up the leg to eventually drain into the femoral vein in the thigh.
Several muscle perforators are indicated, which are veins that pass through the deep fascia of muscles to connect superficial veins to the deep venous system. These perforators include those at the ‘soleus point’ and the ‘gastrocnemius point’ (May’s vein), which are specific locations where perforating veins connect with the deep veins at the level of the calf muscles.
The popliteal vein is a deep vein that runs behind the knee and receives blood from the lower leg. It continues upward to become the femoral vein in the thigh.
The lesser saphenous vein is visible running along the posterior (back) aspect of the leg. It drains into the popliteal vein at the knee.
The peroneal perforators are veins that connect the peroneal veins of the deep venous system to the superficial veins.
The lateral ankle perforator is a vein near the ankle that connects the superficial veins to the deep veins in that region.
Lastly, the dorsal venous arch is a venous network located on the dorsal surface (top) of the foot, which gives rise to the great saphenous vein medially and the lesser saphenous vein laterally.
This illustration is useful for understanding the venous drainage pathways in the lower leg, the interplay between the superficial and deep venous systems, and the role of perforating veins in facilitating venous return from the extremities back to the heart.
The image is a comparative illustration of two states of venous return in the leg: normal venous return versus a leg affected by deep vein thrombosis (DVT) and venous hypertension.
On the left side, labeled “Normal venous return,” the image depicts a healthy leg with efficient blood flow. The deep vein is shown in blue with one-way valves that ensure blood flows in only one direction, towards the heart (indicated by the red arrow). The normal superficial vein is also shown in blue, running parallel to the deep vein. The calf muscle, often referred to as the ‘calf pump,’ assists in propelling blood upwards through the veins when it contracts. The perforator vein, which connects the superficial to the deep vein, allows blood to pass into the deep venous system.
On the right side, labeled “DVT and venous hypertension,” the image illustrates a leg where a blockage has occurred due to DVT, indicated by the label “Site of DVT.” This blockage in the deep vein, shown in dark blue, prevents normal blood flow. The superficial vein, also in dark blue, is dilated due to the increased pressure from the obstructed deep vein. The image also indicates that there are incompetent valves, shown in red, which lead to back-flow (as shown by the blue arrows pointing downwards) and contribute to venous hypertension, a condition characterized by increased blood pressure within the venous system.
This side-by-side representation emphasizes the importance of valve function and unobstructed blood flow in maintaining venous return. It also highlights how conditions like DVT can lead to complications such as venous hypertension, which can cause pain, swelling, and varicose veins.
The image provides a comprehensive overview of the blood vessel types within the human circulatory system, including both the arterial and venous systems, and the microcirculation of capillaries.
Arterial versus Venous Systems: Arteries are depicted with thick walls composed of an outer coat, elastic tissue, smooth muscle, and an inner endothelial lining. The elastic arteries, like the aorta, have a prominent elastic layer allowing them to absorb the pressure created by the heart’s pumping action and help propel blood forward. Muscular arteries have a thicker layer of smooth muscle, enabling precise control of blood flow and pressure through vasoconstriction and vasodilation.
Veins, shown on the left side of the image, have thinner walls compared to arteries. They have less smooth muscle and elastic tissue, which is why they appear distensible or collapsible. Veins are equipped with valves, particularly in medium-sized veins, to prevent backflow of blood and ensure it moves toward the heart, especially against gravity.
Comparison of Venous Vessel Sizes: Large veins, such as the vena cava, have a significant outer coat and a moderate amount of elastic tissue, which allows them to transport a large volume of blood back to the heart with minimal resistance. Medium-sized veins, like the ones in the limbs, have valves that are critical for unidirectional blood flow. Venules, the smallest veins, connect capillaries to the larger veins and are primarily responsible for collecting blood from capillary beds.
Capillary Types: The image also differentiates between two types of capillaries:
- Fenestrated capillaries have pores within their endothelial lining that allow for faster exchange of water and smaller molecules between blood and tissues.
- Continuous capillaries lack pores, making them less permeable than fenestrated capillaries, and are found in most tissues such as muscle, skin, and the central nervous system.
Overall, the arterial system is characterized by thick-walled vessels that transport oxygenated blood away from the heart under high pressure, while the venous system comprises thin-walled vessels that return deoxygenated blood to the heart under lower pressure. The different sizes of the venous vessels reflect their roles: from post-capillary venules that collect blood for return, to medium-sized veins that propel it aided by muscular contractions and valves, up to large veins that carry it back to the heart. The capillary networks serve as the interface for nutrient and gas exchange between the arterial and venous systems.
The image provides a visual representation of the circulatory system, emphasizing a large vein’s anatomy and the properties of blood flow through it.
On the left, we see an outline of a human figure with the venous system highlighted in blue, indicating the pathways by which blood returns to the heart. The veins from the lower body converge to form the inferior vena cava, while those from the head and arms form the superior vena cava, both emptying into the right atrium of the heart.
The right side of the image is a detailed cross-sectional view of a large vein, detailing its various layers:
- The innermost layer is the endothelium, a smooth lining that reduces friction and interacts with blood cells as they pass.
- Next is the basement membrane, which provides structural support for the endothelial cells.
- The elastic fibers allow the vein to stretch and accommodate varying volumes of blood.
- The smooth muscle layer enables the vein to contract and maintain blood flow towards the heart, despite the low-pressure environment.
- Lastly, the outer coat provides structural integrity and protection for the vein.
The diagram also illustrates the relationship between blood pressure and wall thickness. In large veins, blood pressure is relatively low, and the wall thickness is correspondingly thinner than in arteries, which must accommodate higher pressure. This structural difference is key to the different functions of arteries and veins: arteries must be robust to handle the surge of blood with each heartbeat, while veins require flexibility and the capacity to hold larger volumes of blood.
Additionally, the image includes an icon representing the direction of blood flow towards the heart and a comparison scale showing that the blood pressure within veins is low, and the wall thickness is relatively thin compared to arteries. This information is vital for understanding the efficiency of venous return and the mechanisms that support it, such as the venous valves not depicted in this specific illustration but crucial in preventing backflow of blood.
The image is divided into two parts. On the left, it depicts the human venous system with veins marked in blue, illustrating the network that returns blood to the heart. The representation shows both the superficial and deep veins throughout the body, including those in the arms, legs, and trunk.
On the right, a detailed cross-section of a medium-sized vein is highlighted. The layers from outside in are:
- The outer coat, which provides protection and structure to the vein.
- A layer of smooth muscle, which is thinner than that found in arteries, but it can contract to help move blood back towards the heart.
- Elastic fibers, which give the vein the ability to stretch and accommodate various volumes of blood.
- The basement membrane provides a supportive framework for the cellular layers.
- The endothelium is the innermost layer that lines the lumen of the vein and comes in direct contact with blood.
This cross-section also shows a valve within the vein, which is crucial in preventing backflow and ensuring unidirectional blood flow towards the heart, a feature particularly important in the extremities to counteract the effects of gravity.
The scales at the bottom indicate that the blood pressure within medium-sized veins is low to medium, and the wall thickness is moderate, thicker than capillaries but thinner than arteries. The venous system operates under lower pressure compared to the arterial system, which is reflected in the wall structure; veins have a larger lumen and thinner walls relative to their diameter.
The illustration underscores the functional design of the venous system, optimized for the low-pressure, high-volume transport of blood, and the role of venous valves in maintaining efficient circulation.
The image provides a detailed view of the venous system in the human hand and a cross-sectional diagram of a venule, which is a very small vein.
On the left, we can see a network of veins in the hand, depicted in blue, which are responsible for draining deoxygenated blood and returning it to the heart. These superficial veins are visible through the skin in many individuals.
On the right, the cross-section of a venule highlights its structure. The layers from the outside in are as follows:
- The outer coat, which is the external layer of the venule providing structural support.
- Smooth muscle rings are present but much less developed than in larger veins or arteries. These muscle cells can adjust the diameter of the venules, but their role is limited given the low pressure in these vessels.
- The basement membrane is a thin layer that supports the endothelial cells.
- The endothelium is the innermost layer of the blood vessel and comes in direct contact with the blood flowing through it.
The diagram also indicates that blood flow in venules is directed toward the heart and that the blood pressure in venules is low, as reflected by the scale indicating low blood pressure and thin wall thickness. This is consistent with the role of venules, which are to collect blood from capillary beds and begin the process of returning it to larger veins and eventually back to the heart. The structure of the venules reflects their function in the microcirculation, where the exchange of nutrients and wastes occurs, and they are not subjected to the high pressures found in the arterial system.
The image showcases a detailed illustration of the capillary network in the human hand and specifically highlights the structure of a fenestrated capillary.
On the left side, a dense network of capillaries is visible throughout the hand and fingers, depicted in a purplish hue. Capillaries are the smallest blood vessels in the body and are essential for the exchange of oxygen, nutrients, and waste products between the blood and the tissues.
On the right side, there’s an enlarged view of a fenestrated capillary, which is characterized by the presence of small pores, or fenestrations, within its endothelial lining. These fenestrations are represented as red dots. This type of capillary is typically found in organs that require rapid exchange of substances, such as the kidneys, intestines, and endocrine glands. The fenestrations allow for increased permeability, facilitating the transfer of small molecules.
The structure of a fenestrated capillary includes:
- The endothelium, which is the single layer of cells that line the interior surface of the capillary.
- Fenestrations, which are the pores in the endothelial cells that allow for passage of certain substances.
- The basement membrane, a thin layer of extracellular matrix that provides structural support to the endothelial cells.
The bottom of the image provides indicators for blood pressure and wall thickness. It shows that blood pressure within capillaries is low, and the wall thickness is thin, reflecting the need for capillaries to facilitate the exchange of substances without resistance. The direction of blood flow is indicated as moving towards the heart, as part of the venous return system after the exchange of gases and nutrients has occurred in the capillaries.
The image illustrates the progressive stages of varicose vein development, a condition characterized by dilated and twisted veins, typically in the legs, which results from venous insufficiency.
Stage 1: Spider veins -- These are small, fine veins that can be seen just under the skin. They are also called telangiectasias and usually do not cause symptoms.
Stage 2: Reticular varicose veins -- These are larger than spider veins and may appear raised with a bluish color. They can cause discomfort and indicate more significant venous insufficiency.
Stage 3: Venous nodes -- At this stage, the veins become even more enlarged and twisted, forming palpable nodes. This can be associated with symptoms such as aching, heaviness, or cramping in the legs.
Stage 4: Chronic venous insufficiency -- This stage is marked by persistent edema, changes in skin color, and skin texture due to long-standing venous hypertension and poor blood flow. It can lead to further complications like dermatitis.
Stage 5: Trophic ulcers or varicose eczema -- The most advanced stage of varicose vein development includes the formation of trophic ulcers, which are severe and difficult-to-heal wounds that arise from chronic venous insufficiency. Varicose eczema refers to skin changes such as thickening and inflammation that can occur with severe varicose veins.
The images depict the legs at various stages, showing the visible changes in the veins and skin that accompany the progression of this condition. It highlights the importance of early detection and treatment to prevent advancement to more severe stages.
The image illustrates the concept of Deep Vein Thrombosis (DVT) through a comparison between a normal blood flow in a vein and the progressive stages of DVT.
On the left, a cross-section of a normal vein in the leg shows unobstructed blood flow, with the arrows indicating the direction of blood moving towards the heart. The vein is clear, and the blood cells are flowing freely.
The subsequent images labeled 1, 2, and 3 depict the stages of DVT:
The first stage shows the initial formation of a blood clot within the vein. The clot is represented by a cluster of red clumps, obstructing the normal flow of blood, which is indicated by the black arrow showing a reduction in blood flow past the clot.
In the second stage, the clot has increased in size, further impeding blood flow. The arrow shows a more significant blockage, indicating that blood flow is becoming increasingly restricted.
The third stage presents a larger thrombus (blood clot), which is blocking most of the vein’s lumen. The blood flow is severely restricted, as shown by the small arrow, which can lead to increased venous pressure behind the clot, swelling, and pain in the affected limb.
DVT is a serious condition because parts of the clot can break off and travel through the bloodstream, potentially causing a pulmonary embolism if they lodge in the lungs. This image highlights the importance of recognizing the signs and symptoms of DVT and seeking prompt medical attention to prevent complications.
|Veins near the bridge of the nose, receiving blood from regions around the eyes and root of the nose.
|A longitudinal vessel on the right side running alongside the vertebral column, involved in draining the thoracic wall and some abdominal structures into the superior vena cava.
|Formed by the union of the internal jugular and subclavian veins, these veins receive blood from the head, neck, and arms.
|Calf Muscle Pump
|The mechanism by which the calf muscles assist in venous blood flow, compressing deep veins in the leg during contraction to push blood upwards.
|Deep Vein Thrombosis (DVT)
|A condition characterized by the formation of a blood clot within a deep vein, typically in the leg, which can obstruct blood flow and lead to complications like pulmonary embolism.
|External Jugular Vein
|A vein that drains the scalp and deep parts of the face, descending over the sternocleidomastoid muscle.
|A major venous channel running vertically down the face, responsible for draining venous blood from superficial areas.
|A type of capillary with pores in its endothelial lining, allowing for increased permeability and facilitating the transfer of small molecules.
|Great Saphenous Vein
|The longest vein in the body, running from the foot up the inside of the leg to the groin, where it drains into the femoral vein.
|Inferior Vena Cava
|The large vein that ascends along the spine, transporting blood from the lower parts of the body to the heart.
|Internal Jugular Vein
|A larger, deeper vein that runs medial to the sternocleidomastoid muscle, carrying venous blood from the brain, superficial face, and neck back toward the heart.
|A deep vein behind the knee, receiving blood from the lower leg and continuing upward to become the femoral vein in the thigh.
|A potentially life-threatening condition that occurs when a blood clot travels to the lungs and blocks one of the pulmonary arteries.
|Runs under the clavicle, acting as a major conduit for blood returning to the heart from the upper extremities and head.
|Superior Vena Cava
|A large vein that carries blood from the upper body into the right atrium of the heart.
|Dilated, twisted veins that result from venous insufficiency, typically occurring in the legs.
|A condition where the veins have trouble sending blood from the limbs back to the heart, often leading to varicose veins and other complications.
|A structure within veins that ensures one-way blood flow back to the heart, preventing backflow.
