Ears

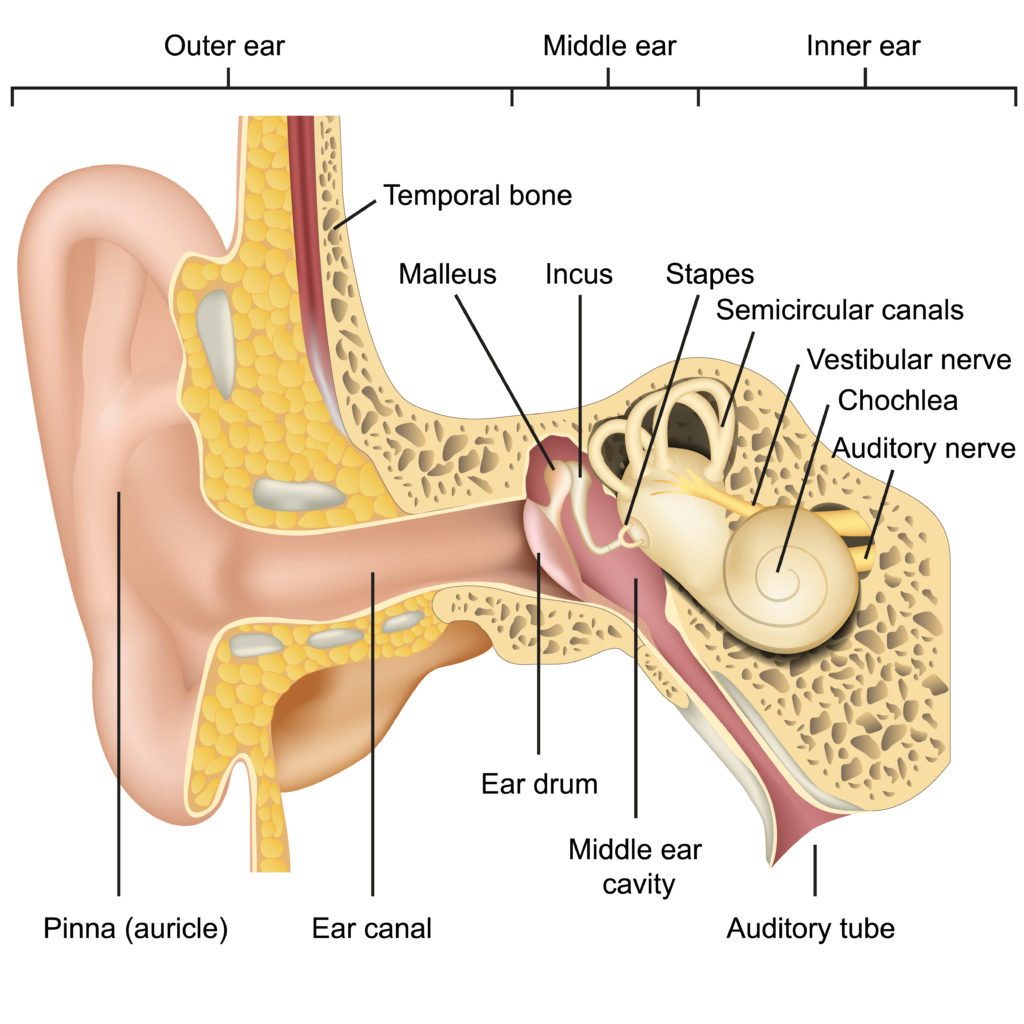

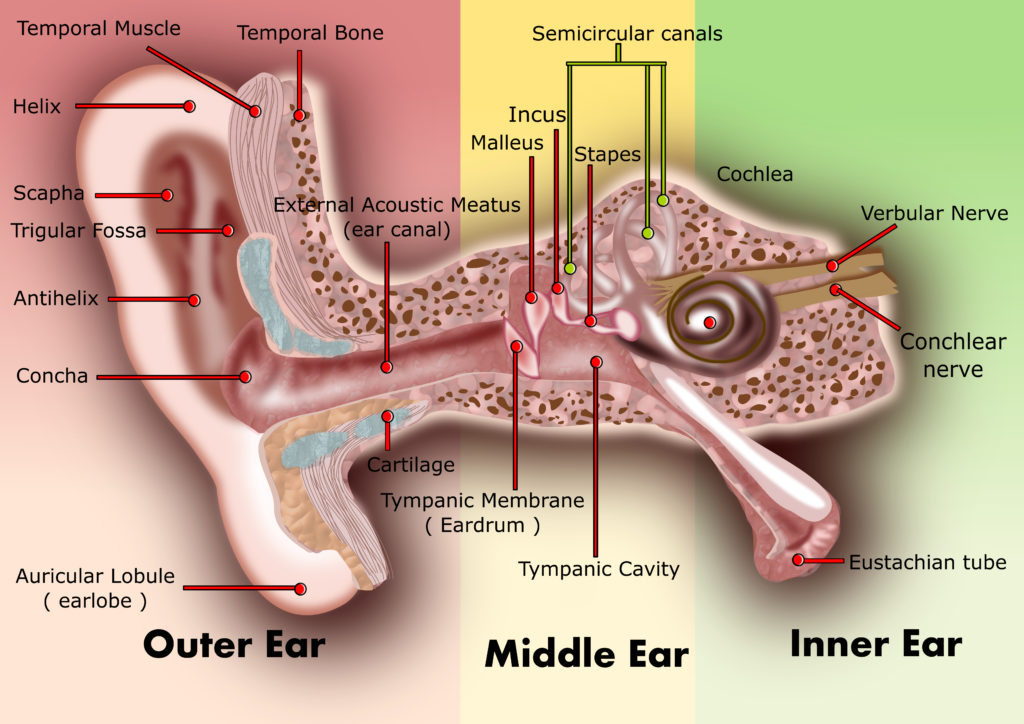

This image presents a detailed cross-sectional view of the human ear, segmented into three main parts: the outer ear, the middle ear, and the inner ear, each demarcated by vertical black lines.

Starting from the left, the outer ear is comprised of the pinna, also known as the auricle, which is the external part of the ear that we can see. It funnels sound waves into the ear canal, a tube-like structure that leads to the ear drum. The ear drum, also known as the tympanic membrane, is a thin membrane that vibrates when sound waves hit it.

In the middle ear, three small bones named the malleus, incus, and stapes (collectively known as the ossicles) are visible. These bones are connected in a chain-like fashion and serve to amplify the vibrations from the ear drum. The malleus is attached to the ear drum, the incus is the intermediate bone, and the stapes is in contact with the oval window of the inner ear. The middle ear cavity also connects to the auditory tube (also known as the Eustachian tube), which helps to equalize pressure in the middle ear with the pressure in the environment.

The inner ear contains the cochlea, a snail-shaped structure that converts the mechanical vibrations from the stapes into neural signals that the brain can interpret as sound. The semicircular canals, which are three tiny, looped tubes connected to the cochlea, help with balance but are not directly involved in hearing. The vestibular nerve carries balance signals from the semicircular canals to the brain, while the auditory nerve transmits auditory information from the cochlea.

An additional label points to the temporal bone, which is part of the skull that houses the structures of the ear.

In summary, this image illustrates the anatomy of the ear with a focus on the path that sound waves take from the external environment to the brain. The outer ear captures sound waves and directs them to the ear drum. The middle ear’s ossicles amplify the vibrations from the ear drum to the inner ear, where they are converted into electrical signals by the cochlea, and then these signals are sent to the brain via the auditory nerve. The middle ear is also connected to the auditory tube, which helps to maintain pressure equilibrium. The semicircular canals are involved in balance and are connected to the brain by the vestibular nerve.

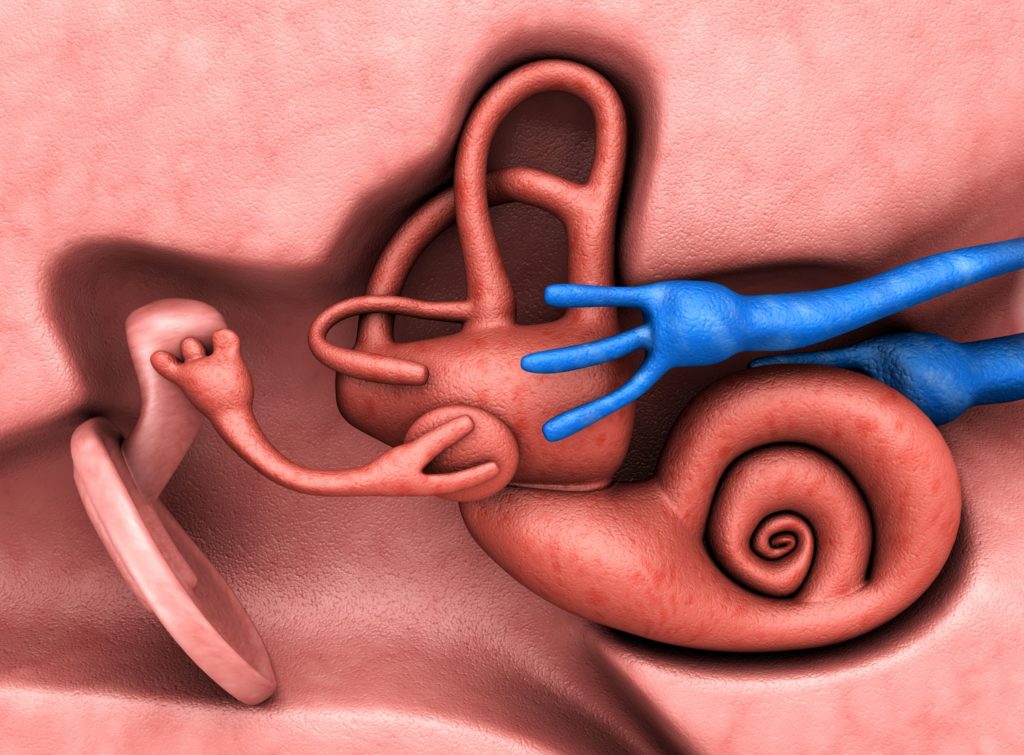

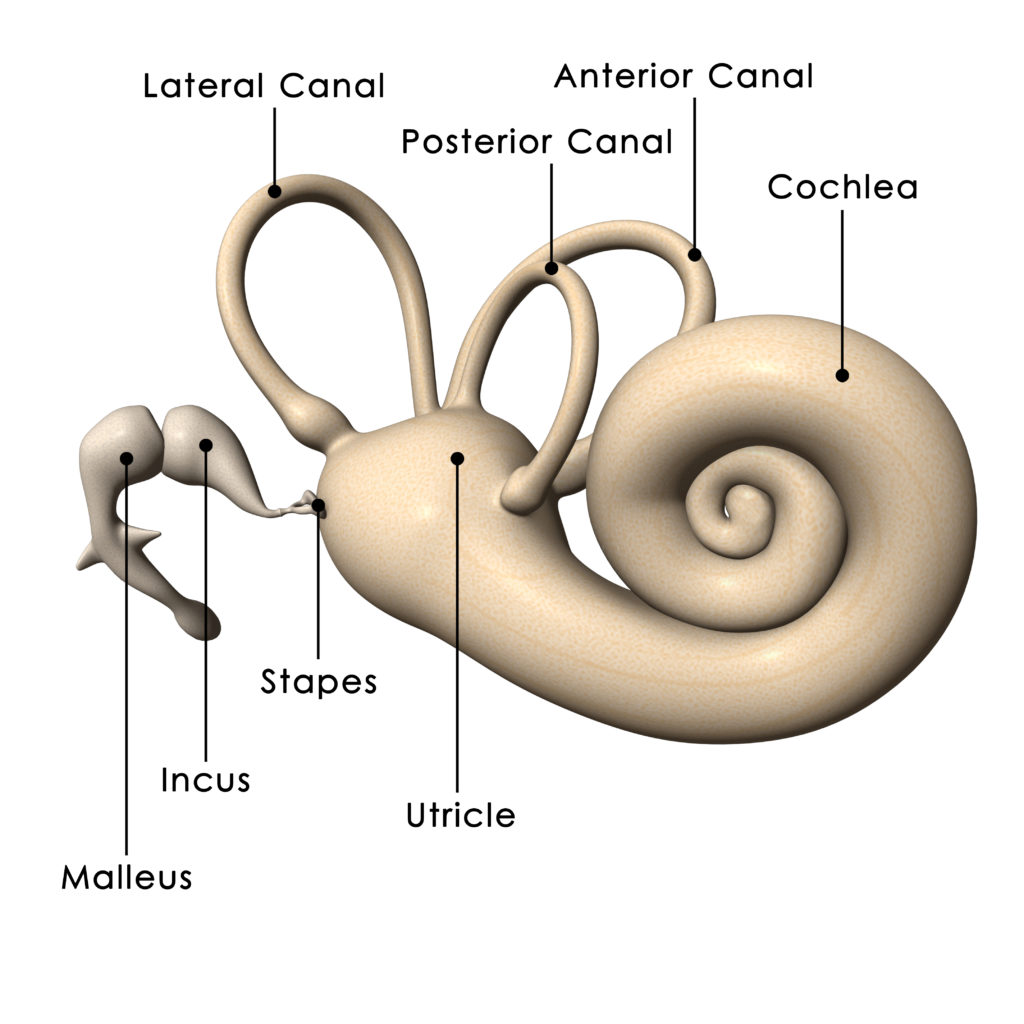

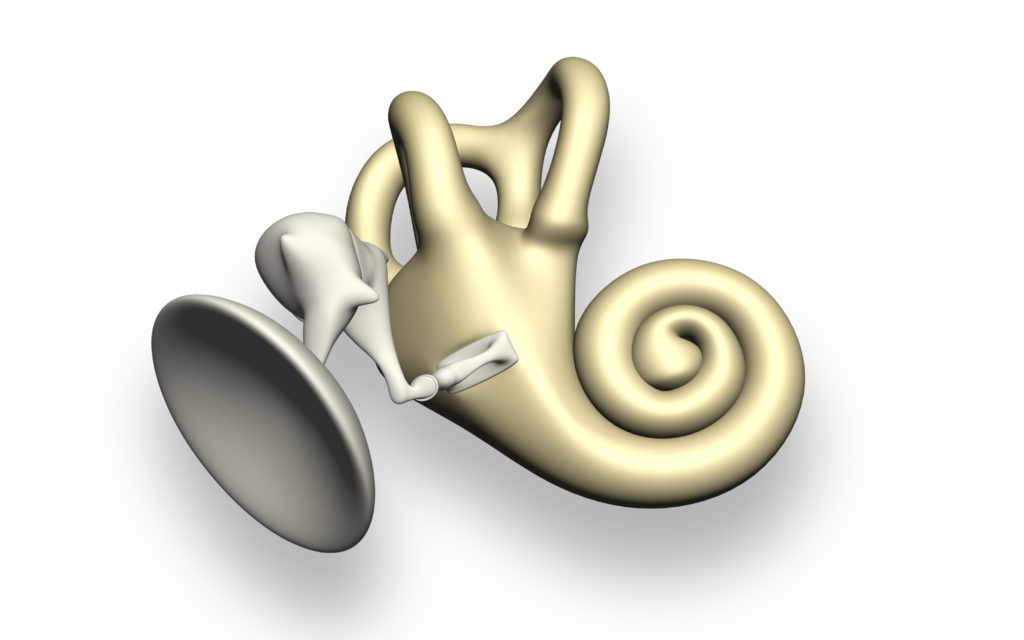

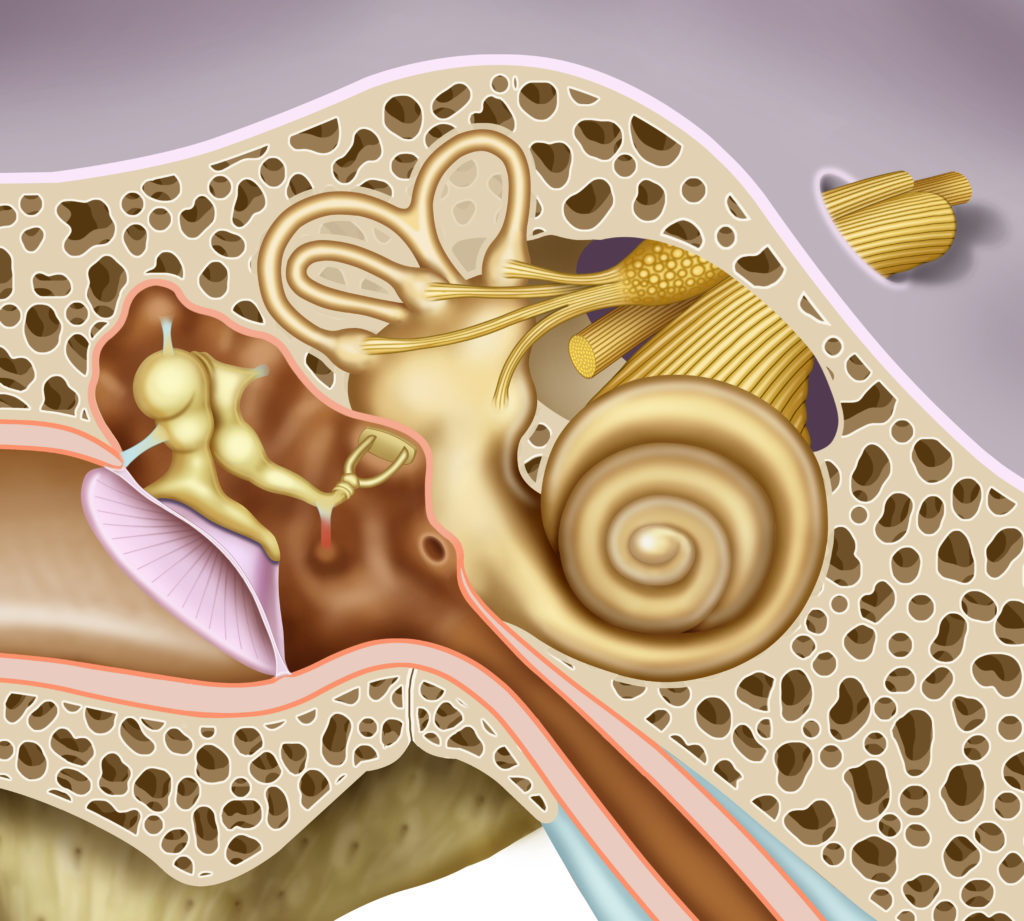

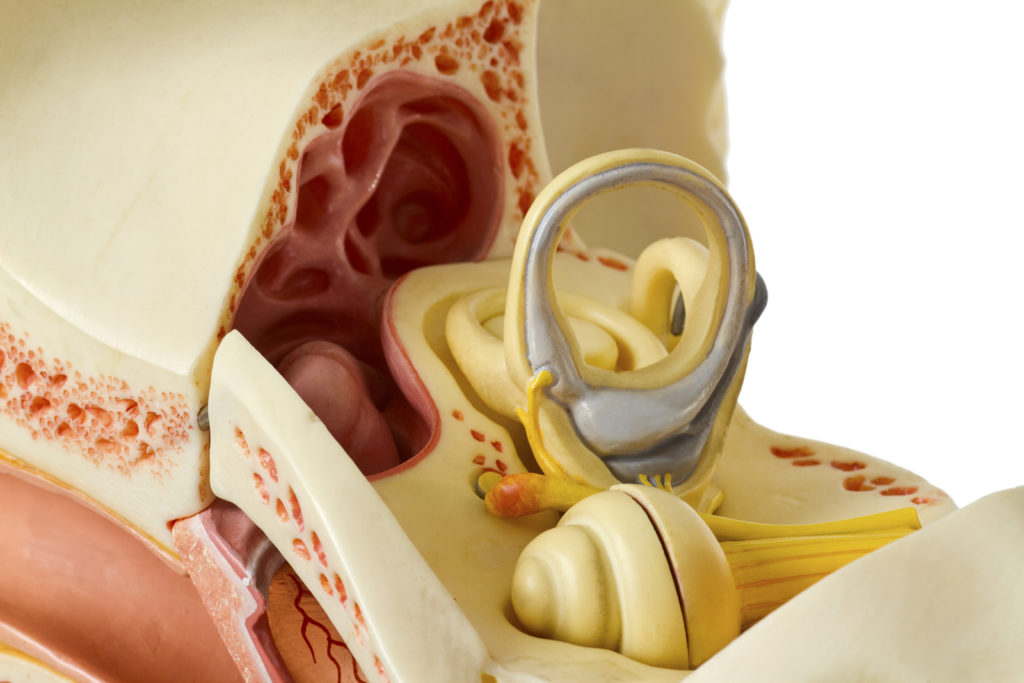

This image provides a focused view on the inner ear’s anatomy and the adjacent structures of the middle ear. It shows a three-dimensional representation, giving us a clearer idea of how these structures are situated in relation to each other.

On the left side of the image, you can see the three small bones of the middle ear: the malleus, incus, and stapes. These are the ossicles which serve to transmit and amplify sound vibrations. The malleus has a hammer-like shape and is connected to the internal surface of the tympanic membrane. The incus, which resembles an anvil, is situated between the malleus and the stapes, serving as the transmission link. The stapes, which looks like a stirrup, is the final ossicle in the chain and connects to the inner ear.

The image prominently features the cochlea, a spiral-shaped organ that is responsible for translating the vibrations from the stapes into neural signals that can be processed by the brain. The cochlea’s snail-like structure is important for its function, with different parts of the spiral being responsible for different frequencies of sound.

Above the cochlea, there are three semicircular canals: the lateral canal, posterior canal, and anterior canal. These are part of the vestibular system, which is critical for maintaining balance and spatial orientation. Each canal is positioned at a different angle and is filled with fluid. As the head moves, the fluid shifts, and hair cells within the canals send signals to the brain about the body’s position and motion.

Below the semicircular canals, the utricle is indicated. This structure, along with the saccule (not labeled here), are also involved in balance, particularly in detecting linear accelerations and the position of the head relative to gravity.

In summary, this image breaks down complex inner ear structures into a more digestible format. It shows the connection of the ossicles to the inner ear, the cochlea’s role in hearing, and the semicircular canals and utricle’s roles in balance, all of which collaborate to allow us to perceive sound and maintain equilibrium in our environment.

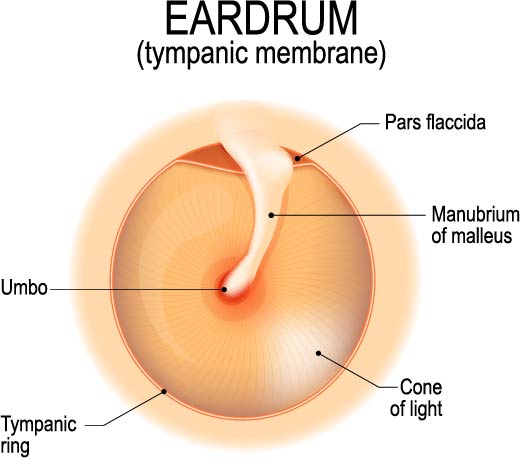

The image presents a detailed view of the eardrum, also known as the tympanic membrane, which is a critical component of the human auditory system. The eardrum is a thin, cone-shaped membrane that separates the external ear from the middle ear and vibrates in response to sound waves.

The central part of the eardrum is called the umbo, which is the point where the eardrum is pulled inward and is generally the most indented part. Connected to the umbo is the manubrium (handle) of the malleus, one of the three ossicles in the middle ear. This connection shows how vibrations from the eardrum are directly transmitted to the malleus, which then articulates with the incus and stapes to conduct sound to the inner ear.

Above the manubrium is the pars flaccida, a small, slack section of the membrane. It has a different structure from the rest of the eardrum and is less taut, which can be important for equalizing pressure in the middle ear.

The outermost edge of the eardrum is defined by the tympanic ring, a bony or cartilaginous structure that anchors the tympanic membrane to the temporal bone.

A notable feature in the image is the “cone of light,” a reflection that is typically seen during an otoscopic examination as a triangular light reflection. Its presence and position can be an indicator of the eardrum’s health and whether it is properly positioned.

In summary, this image intricately displays the anatomy of the eardrum, detailing its connection to the malleus and its role in hearing. The eardrum’s structure is finely tuned to transmit sound vibrations efficiently to the ossicles, with the umbo and manubrium of malleus serving as the central point of this vibratory transmission. The cone of light is a visual sign used by clinicians to assess the integrity and position of the tympanic membrane during an examination

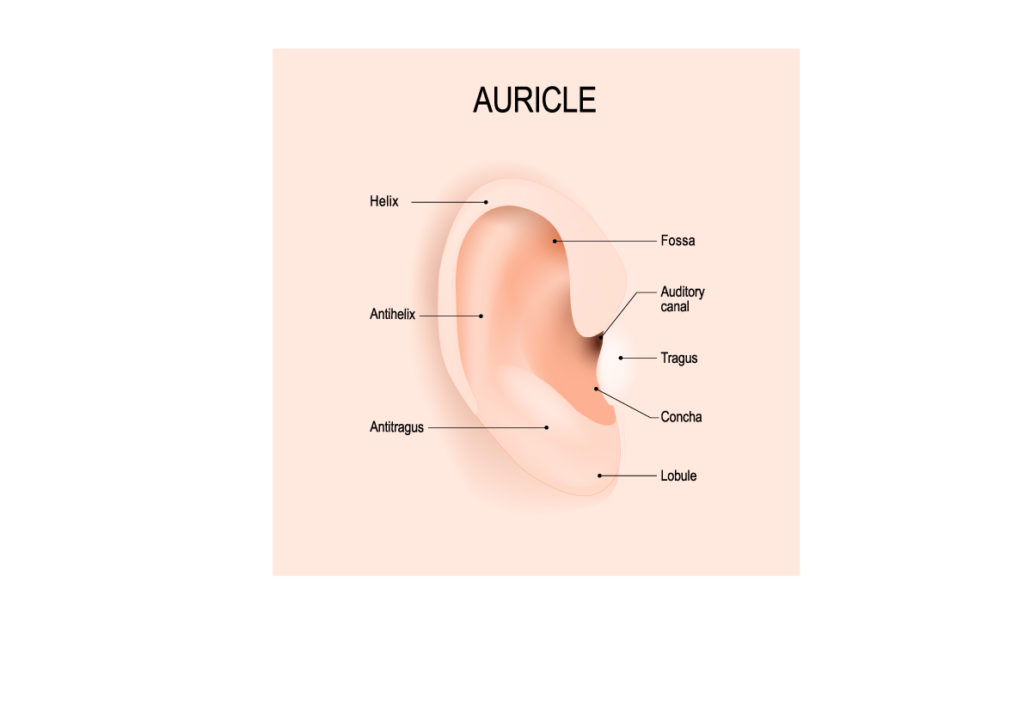

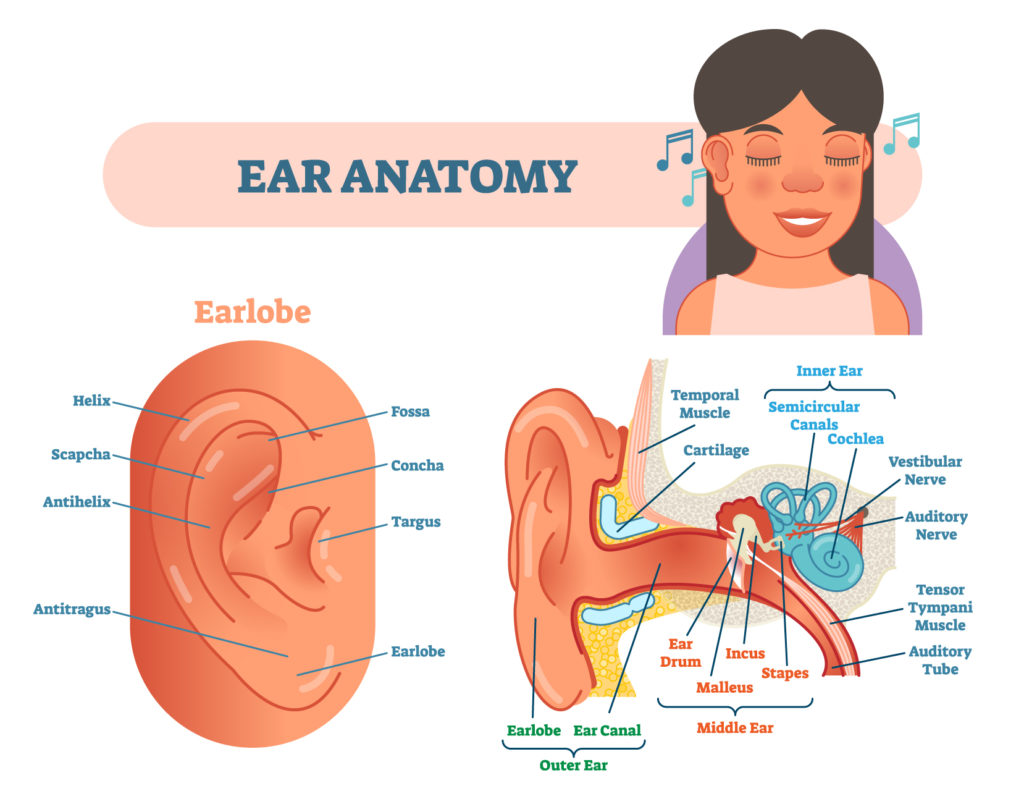

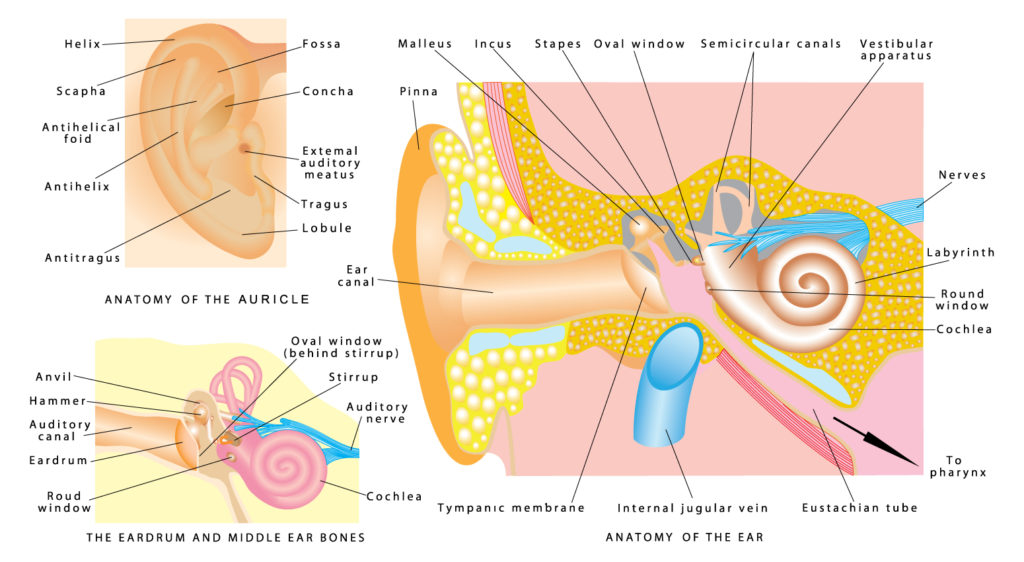

This image depicts the external part of the human ear, known as the auricle or pinna. The auricle is the visible part of the ear that resides outside the head and is primarily composed of cartilage covered by skin. It serves as the entryway for sound waves into the auditory system.

The various parts of the auricle are labeled:

  • The helix is the folded over outer rim of the ear.
  • The antihelix is the ridge of cartilage just inside the helix, which creates a Y-shaped form.
  • Below the antihelix is the antitragus, a small bump of cartilage opposite the tragus.
  • The tragus is a small, pointed piece of cartilage that extends over the ear canal. This feature is often the part touched when someone tries to block out external sounds.
  • The concha is the large, concave space immediately adjacent to the ear canal, which helps to funnel sound into the ear.
  • The auditory canal, also known as the ear canal, is the pathway leading inwards towards the eardrum.
  • The fossa is a shallow depression just above the antihelix.
  • Finally, the lobule is the fleshy, lower part of the auricle and is the only part not supported by cartilage. This is typically where earrings are placed.

In summary, this image provides a clear representation of the auricle’s anatomy. Each part of the auricle contributes to the collection and funneling of sound waves into the ear canal, with its overall structure helping to localize and direct sounds.

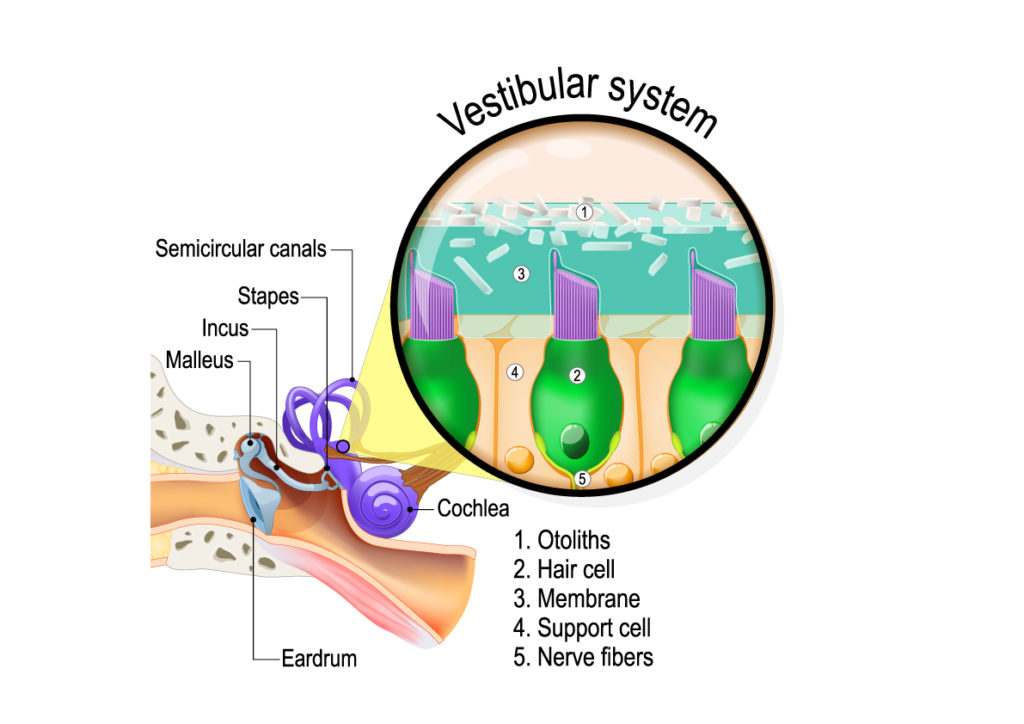

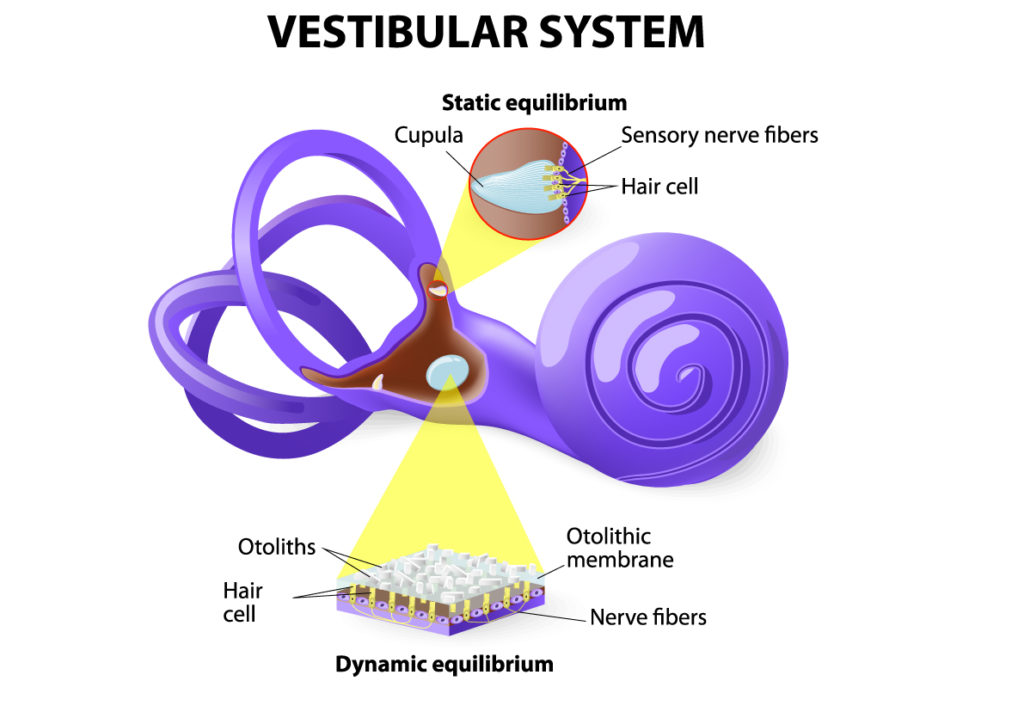

This image features a color illustration of the human ear, specifically highlighting the vestibular system, which is responsible for balance, and its connection to the auditory system.

On the left, we see the outer ear represented by the ear canal leading to the eardrum, a thin membrane that vibrates in response to sound. These vibrations are then transmitted through the three small bones of the middle ear: the malleus (connected to the eardrum), the incus (in the middle), and the stapes (at the end of the chain, interfacing with the inner ear).

The cochlea, shown in a pinkish hue, is a snail-shaped structure in the inner ear that converts sound vibrations into neural signals that can be interpreted by the brain as sound.

Above the cochlea, the semicircular canals are part of the vestibular system. These canals are filled with fluid and detect rotational movements of the head.

The magnified inset illustrates the microscopic structures within the vestibular system. Here we see:

  1. Otoliths, which are tiny crystals that rest atop a gelatinous layer in the utricle and saccule of the vestibular system. Their movement in response to gravity and linear acceleration helps determine the position of the head.
  2. Hair cells, which are the sensory receptors of both the auditory and the vestibular systems. Their hair-like extensions, called stereocilia, are deflected by fluid movement or by the otoliths, which in turn modulate the release of neurotransmitters.
  3. A membrane that supports the hair cells.
  4. Support cells, which provide structural stability to the sensory epithelium.
  5. Nerve fibers, which are the pathways that transmit signals from the hair cells to the brain for interpretation.

In summary, the image provides a visual connection between the structures involved in hearing and balance. The eardrum and ossicles are shown in the process of auditory transduction, while the cochlea’s role in hearing and the semicircular canals in balance are emphasized. The detailed view of the vestibular system’s hair cells and their associated mechanisms showcases how the ear senses both sound and changes in head position or movement.

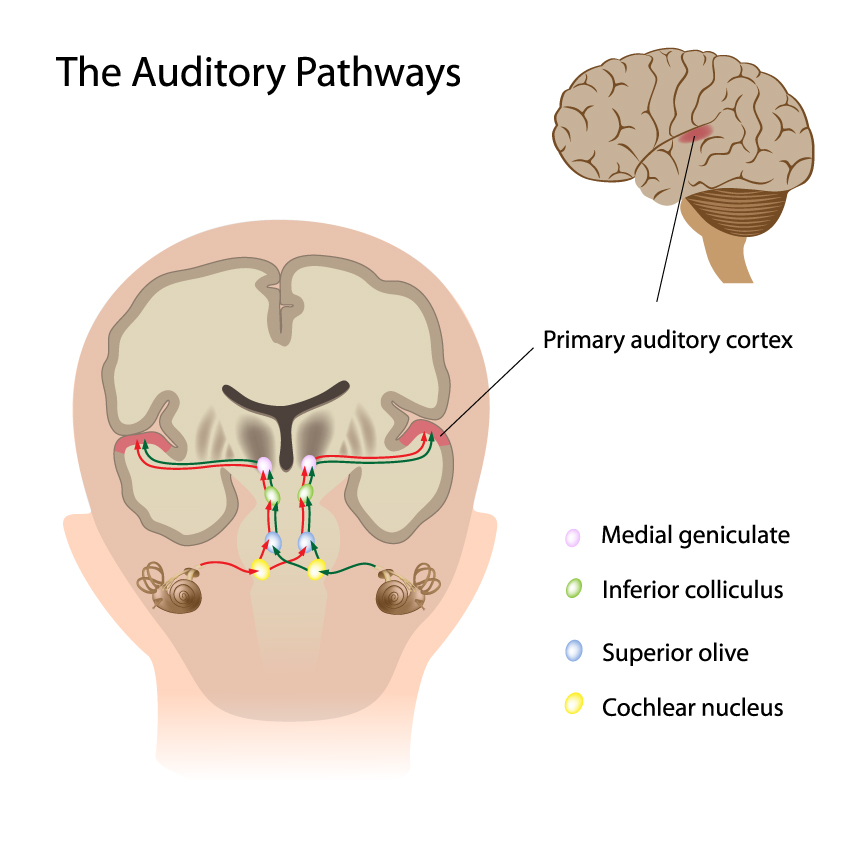

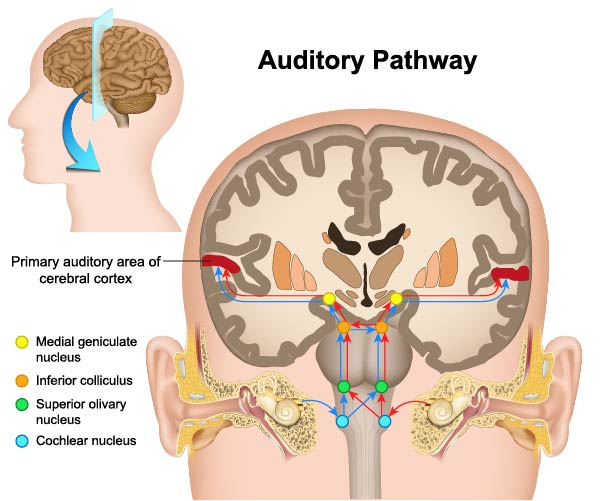

The image depicts the auditory pathway, tracing the journey of sound information from the ears to the brain’s primary auditory area in the cerebral cortex. It provides a simplified view of the complex network involved in the process of hearing.

The pathway starts at the bottom with the cochlear nuclei, which are the first brainstem nuclei where auditory nerve fibers from the cochlea synapse. These nuclei are represented by green dots.

From there, the pathway extends to the superior olivary nucleus, indicated by blue dots. The superior olivary nucleus is significant for its role in localizing sound in the horizontal plane, thanks to its ability to analyze the difference in sound arrival time between the two ears.

The next step in the pathway is the inferior colliculus, marked by yellow dots, which acts as a major auditory center for the reflexive responses to sound and also contributes to the localization of sound.

The red line then leads to the medial geniculate nucleus (part of the thalamus), depicted by red dots. The medial geniculate nucleus acts as a relay for auditory information on its way to the cerebral cortex.

The final destination is the primary auditory area of the cerebral cortex, where complex processing of auditory information takes place, leading to the conscious perception of sound. This area is outlined in the illustration on the sides of the brain.

The inset on the left side shows a lateral view of the head with an arrow pointing to the brain, emphasizing that the auditory pathway extends from the ears to the auditory cortex in the brain.

In summary, the auditory pathway is a multi-step process where sound information is relayed and processed through various structures from the cochlea to the brainstem, through the midbrain, and into the auditory cortex of the brain. Each stage is involved in progressively more complex processing, which ultimately results in the perception of sound.

.

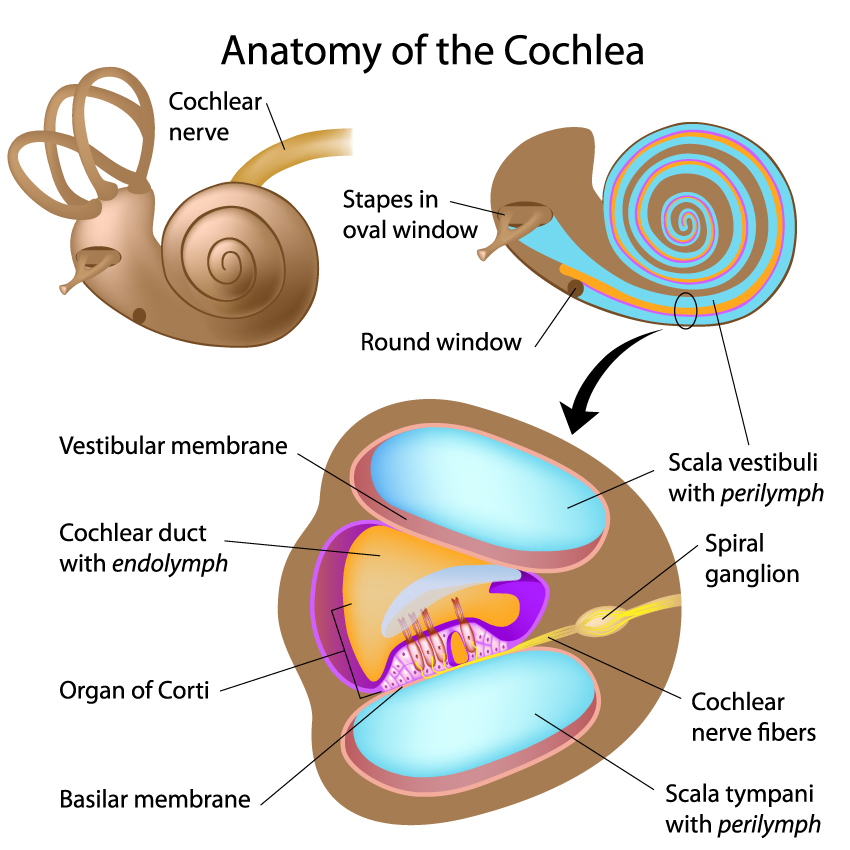

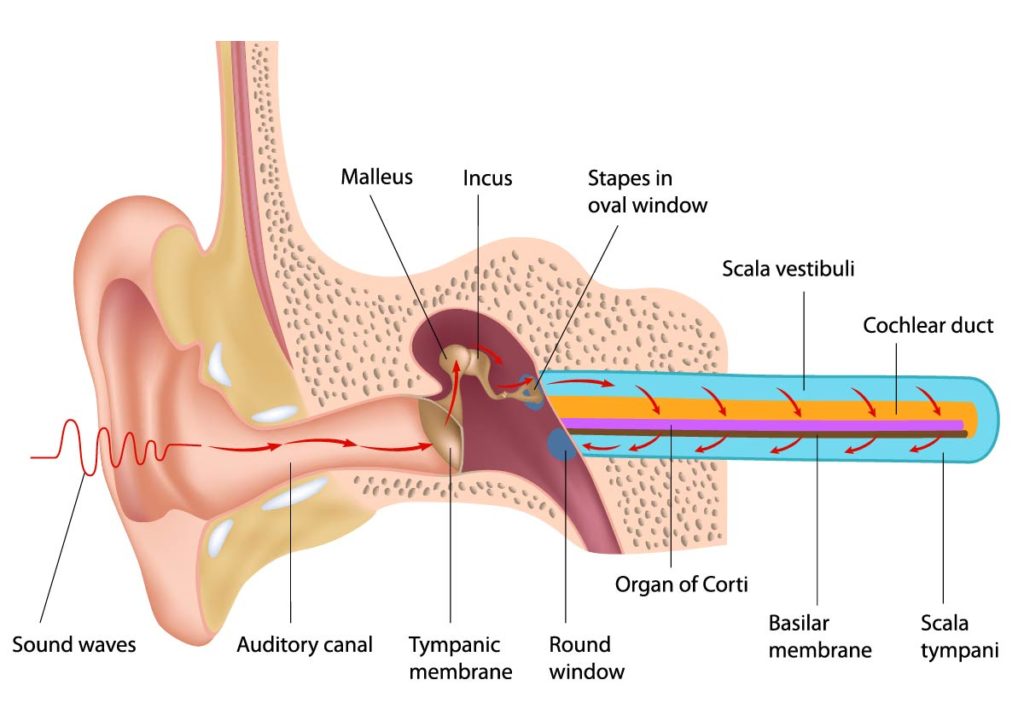

This illustration provides a detailed view of the anatomy of the cochlea, which is a key component of the inner ear involved in the sense of hearing.

The top left of the image shows the cochlea itself, a spiral-shaped organ, with the cochlear nerve attached. This nerve carries auditory sensory information to the brain.

Next to this, we see the stapes, one of the three ossicles of the middle ear, fitting into the oval window, which is the membrane-covered opening to the cochlea. Below the oval window is the round window, another membrane-covered opening that allows for the displacement of fluid within the cochlea when the oval window is pressed by the stapes.

The main section of the image shows a cross-section of the cochlea. Inside, it is divided into three fluid-filled chambers: the scala vestibuli (top), scala media (middle), and scala tympani (bottom). These chambers are filled with perilymph, except for the cochlear duct (scala media), which is filled with endolymph. The vestibular membrane separates the scala vestibuli from the cochlear duct.

The Organ of Corti, which resides in the cochlear duct, is the true sensory organ of hearing. It contains hair cells that convert the fluid waves into electrical signals. These signals are then carried to the brain by the cochlear nerve fibers.

The basilar membrane forms the base on which the Organ of Corti sits, and its mechanical properties are crucial for the perception of different frequencies of sound.

The spiral ganglion is depicted as well, which contains the cell bodies of the sensory neurons that send auditory information through the cochlear nerve to the brain.

In summary, the image demonstrates the intricate structures within the cochlea that are essential for hearing. The stapes transmits sound vibrations into the cochlea via the oval window, setting off fluid waves within the perilymph. The Organ of Corti, with its hair cells, transforms these vibrations into nerve impulses that travel along the cochlear nerve to the brain, allowing the perception of sound. The round window serves to accommodate the fluid displacement within the cochlea.

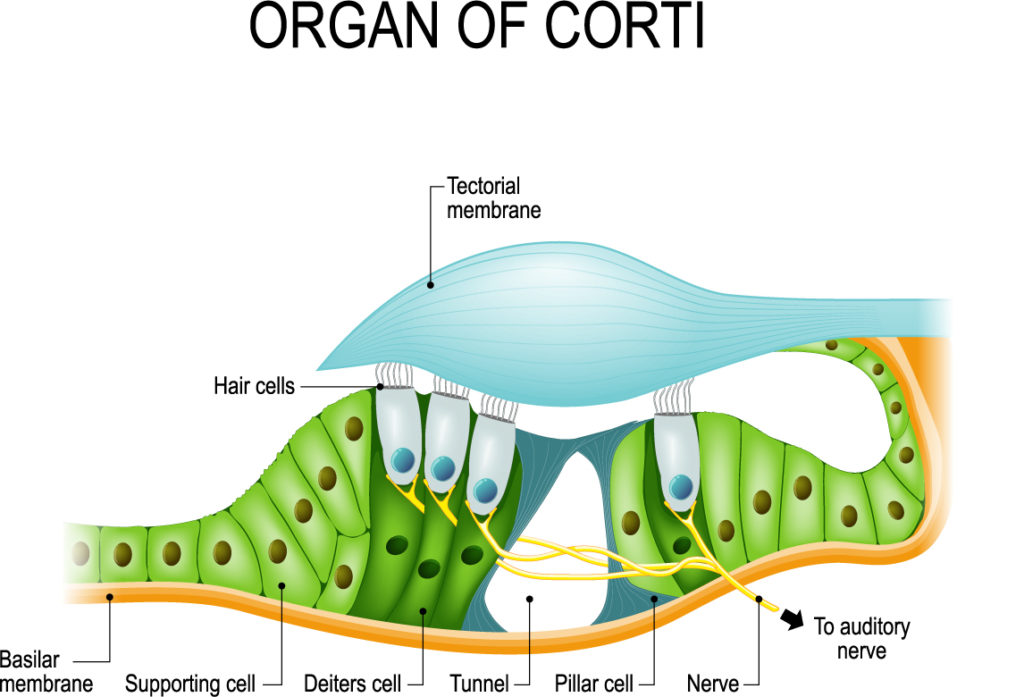

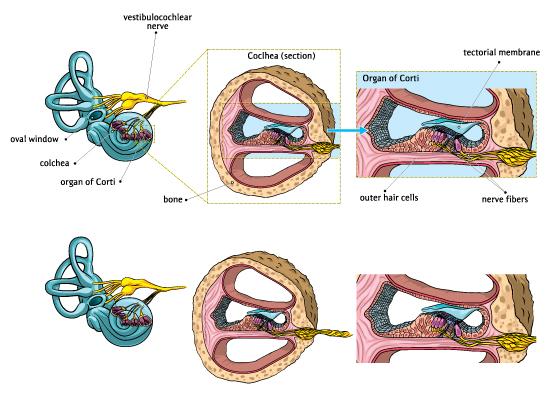

This image provides a detailed look at the Organ of Corti, the sensory structure within the cochlea of the inner ear that is essential for hearing.

At the bottom, we see the basilar membrane, a flexible, ribbon-like structure that runs the length of the cochlea. This membrane supports the Organ of Corti and vibrates in response to sound waves, with different frequencies affecting different regions of the membrane.

Resting on the basilar membrane are several types of cells. The supporting cells provide structural stability for the delicate sensory cells. Among these are the pillar cells, which create a triangular space known as the tunnel, and Deiters’ cells, which are also supporting cells but specifically associated with the outer hair cells.

The hair cells are the true sensory receptors and are named for the hair-like projections, or stereocilia, on their surface. They are neatly arranged in rows with one row of inner hair cells and three rows of outer hair cells. When the basilar membrane vibrates, these hair cells move with it, causing the stereocilia to bend against the overlying tectorial membrane. This bending motion is what initiates the conversion of mechanical energy into electrical signals.

Above the hair cells, the tectorial membrane is depicted. This gelatinous structure is critical because the stereocilia of the hair cells make contact with it. As sound vibrations travel through the cochlea, they cause relative movement between the tectorial membrane and the hair cells, leading to hair cell activation.

The nerves shown are responsible for transmitting the electrical signals generated by the hair cells to the brain via the auditory nerve.

In summary, the Organ of Corti is a finely tuned instrument that translates vibrations in the cochlear fluid into electrical impulses, which are then understood as sound by the brain. The interaction between the basilar membrane, hair cells, supporting cells, and the tectorial membrane is crucial for the hearing process.

TermDefinition
Pinna (Auricle)The visible part of the ear that is outside the head and helps to collect sound waves.
Ear CanalThe tube leading from the outer ear to the eardrum.
Eardrum (Tympanic Membrane)A thin membrane that vibrates in response to sound waves, marking the beginning of the middle ear.
OssiclesThe three small bones in the middle ear (malleus, incus, stapes) that transmit sound vibrations.
MalleusThe first of the three ossicles, attached to the eardrum and connected to the incus.
IncusThe middle ossicle, which transmits vibrations from the malleus to the stapes.
StapesThe last of the ossicles, which transmits sound vibrations to the oval window of the cochlea.
Oval WindowThe membrane-covered opening that receives vibrations from the stapes and leads into the cochlea.
Round WindowA flexible membrane that allows for movement of fluid within the cochlea when the oval window vibrates.
CochleaThe spiral-shaped organ in the inner ear that translates vibrations into neural signals.
Semicircular CanalsThree looped tubes filled with fluid that help maintain balance and detect rotational movements of the head.
Organ of CortiThe sensory organ inside the cochlea, containing hair cells that convert fluid waves into electrical signals.
Hair CellsSensory receptors within the Organ of Corti that are responsible for converting sound vibrations into nerve impulses.
Basilar MembraneThe membrane in the cochlea that supports the Organ of Corti and responds to different frequencies of sound.
Tectorial MembraneThe membrane that lies above the hair cells in the Organ of Corti and is critical for their stimulation.
Auditory NerveThe nerve that carries auditory signals from the cochlea to the brain for interpretation as sound.
Vestibular SystemThe system that includes the semicircular canals and other structures, helping to maintain balance and spatial orientation.
Scala VestibuliThe upper canal in the cochlea filled with perilymph fluid, which is part of the pathway for sound-induced fluid waves.
Scala TympaniThe lower canal in the cochlea, also filled with perilymph and part of the fluid wave pathway.
Cochlear DuctThe middle canal in the cochlea, filled with endolymph and housing the Organ of Corti.
PerilymphThe fluid that fills the scala vestibuli and scala tympani in the cochlea.
EndolymphThe fluid within the cochlear duct (scala media) that bathes the hair cells of the Organ of Corti.
