The human body is navigated anatomically using three principal planes—imaginary lines that divide the body into distinct sections. The Sagittal Plane vertically bisects the body into right and left halves, crucial for describing movements like flexion and extension. The Coronal Plane, or frontal plane, divides the body into anterior and posterior sections, important for adduction and abduction movements. Lastly, the Transverse Plane, cutting horizontally, separates the body into superior and inferior parts, and is associated with rotational actions. These planes are indispensable in the clinical setting for precise anatomical discussions, imaging techniques, and in designing rehabilitative and athletic training programs.
There are three primary anatomical planes of the human body, which are imaginary lines used to divide the body into sections. These planes are central to anatomical terminology and are essential when discussing the location of body parts relative to each other.
Firstly, we have the Sagittal Plane, which is a vertical line running from front to back. It divides the body into right and left halves. In this depiction, the sagittal plane is represented by the line closest to the figure's side profile.
The sagittal plane, particularly the midsagittal plane, is useful when discussing movements that occur in a forward or backward direction. Movements towards the midsagittal plane are termed medial movements, while those moving away are referred to as lateral movements. Flexion and extension, common terms for describing joint movements, typically occur in the sagittal plane. For example, bending the elbow reduces the angle between the forearm and arm, which is flexion, and occurs in the sagittal plane.
Secondly, the Coronal Plane, also known as the frontal plane, is another vertical line but runs side to side. This plane divides the body into anterior (front) and posterior (back) sections. Here, it is shown as the line running down the middle of the figure, bisecting it into front and back portions.
The coronal plane is instrumental when discussing movements that bring limbs towards the body's midline or away from it, known as adduction and abduction, respectively. For example, raising an arm sideways away from the body is an abduction movement occurring in the coronal plane.
Lastly, the Transverse Plane, also referred to as the horizontal plane, cuts across the body horizontally, dividing it into superior (upper) and inferior (lower) parts. In the image, this is the horizontal line that dissects the figure, indicating a division between the top and bottom halves of the body.
The transverse plane is predominantly associated with rotational movements or movements that run parallel to the ground. Rotational movements are described as either pronation or supination in the limbs, and rotational movements of the head or torso are often simply referred to as left or right rotation. For instance, turning the head to the right involves rotation in the transverse plane.
These planes are pivotal in clinical and anatomical settings as they provide a standardized way of describing locations and movements. For instance, a movement toward the back of the body is described as moving posteriorly, while a movement toward the head is moving superiorly. Understanding these planes allows for precise communication in healthcare and education.
In clinical practice, these planes are crucial in imaging techniques like MRI or CT scans, where the body is often imaged in slices corresponding to these planes to pinpoint locations of interest with great accuracy. They're also essential in physical therapy and sports, where understanding the planes helps in designing effective rehabilitation exercises and improving athletic performance by optimizing movement patterns.
The image provides a visual guide to common anatomical directional terms used to describe the locations of structures and regions of the body relative to other parts.
At the top of the image, we have the term "Cranial," indicated by an upward arrow from the center of the figure's head. This term is used to denote a direction towards the head or upper part of the structure, also referred to as cephalic in some contexts.
The opposite direction, indicated by a downward arrow labeled "Caudal," denotes a position towards the lower part of the body or tail. This term is often used in place of 'inferior' when referring to the position of a body part on the vertical axis of the body.
The term "Proximal," indicated by an arrow pointing towards the main bulk of the body on the figure's left arm, is used to describe a position nearer to the point of attachment or to the trunk of the body. It's commonly used when referring to limbs.
Conversely, "Distal," shown by an arrow pointing away from the body on the figure's left arm, describes a position further from the point of attachment to the trunk or further from the origin of a structure.
The terms "Medial" and "Lateral" are shown by arrows pointing towards and away from the center of the body, respectively. "Medial" refers to a position closer to the midline of the body, while "Lateral" denotes a position further from the midline.
These terms are fundamental in clinical and anatomical discussions, as they allow health professionals to locate and describe the positions of injuries, symptoms, or medical procedures with precision. For example, a physician might say that a wound is located on the medial aspect of the thigh, or that pain is felt in the distal portion of the forearm.

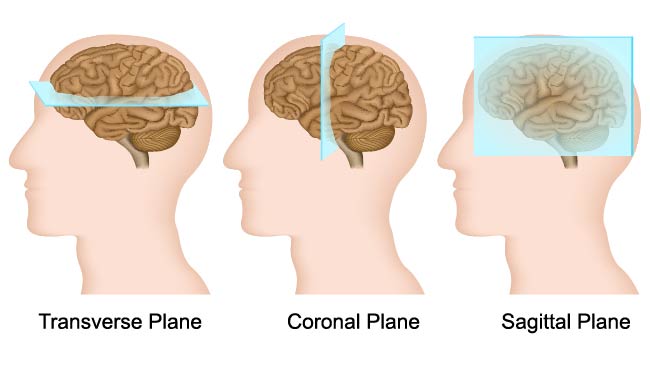

The image presents three views of the human brain, each corresponding to a different anatomical plane, which are key references for viewing or imaging the body.
The first view on the left shows the transverse plane, a horizontal plane that divides the brain into superior (upper) and inferior (lower) parts. This view is akin to looking at a cross-section from the top, revealing structures such as the cerebral cortex, the white matter, and possibly the basal ganglia and lateral ventricles depending on the level of the section.
In the middle, the coronal plane is depicted. This vertical plane divides the brain into anterior (front) and posterior (back) sections. It's like viewing the brain from the front and can reveal the frontal lobes, parietal lobes, temporal lobes, and occipital lobes, as well as the division between the two hemispheres.
The third view, on the right, illustrates the sagittal plane. This vertical plane also divides the brain, but into left and right halves. The image shows a side view of the brain, which can reveal midline structures like the corpus callosum, the thalamus, and the cerebellum.
These anatomical planes are utilized in medical imaging, such as MRI and CT scans, to help healthcare professionals diagnose conditions, plan surgeries, and understand brain anatomy. Each plane provides a unique perspective and allows for the examination of different anatomical features of the brain.
The anatomical position is a standardized stance used in medical and anatomical descriptions as a point of reference. It is essential because it provides a consistent frame of reference for anatomical nomenclature, allowing practitioners to communicate about the body and its parts without ambiguity.
In the anatomical position, the individual stands upright with several key characteristics:
This position is the starting point for any description of the body or its parts in relation to each other. Whether describing the location of a mole on the skin or the orientation of a joint in movement, the anatomical position serves as the foundation for all such descriptions.

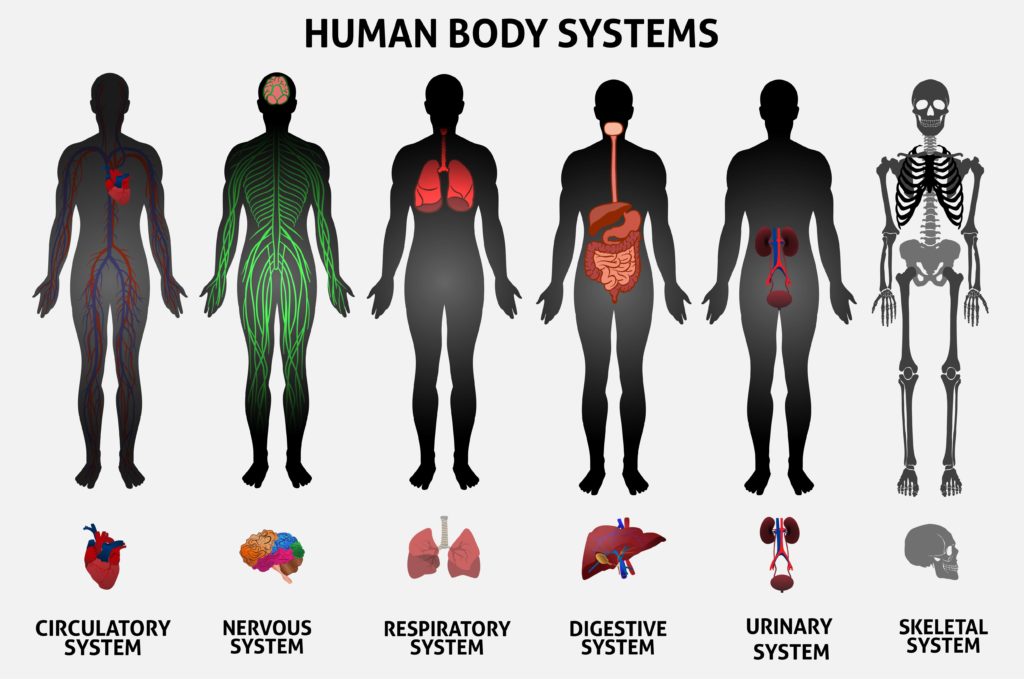

The image above provides a visual summary of several major human body systems, each depicted in a silhouette of the human body, highlighting the organs and structures that compose each system.
Firstly, the circulatory system is represented, showcasing the heart as the central pump, with red and blue vessels depicting the arteries and veins that distribute blood throughout the body. This system is responsible for transporting oxygen, nutrients, and waste products.
Next, the nervous system is illustrated with the brain highlighted in the head region, and a network of nerves branching throughout the body. This system coordinates voluntary and involuntary actions and transmits signals between different parts of the body.
The respiratory system is shown with the lungs and the trachea. This system is responsible for gas exchange, taking in oxygen, and expelling carbon dioxide as we breathe.
Following this, the digestive system is depicted, including the mouth, esophagus, stomach, small and large intestines, and other accessory organs like the liver and pancreas. This system breaks down food into nutrients that the body can use for energy, growth, and cell repair.
The urinary system, consisting of the kidneys, ureters, bladder, and urethra, is responsible for filtering out excess waste and water from the bloodstream and expelling them as urine.
Lastly, the skeletal system is represented by the silhouette of a human skeleton, which provides structural support, protects internal organs, facilitates movement, and serves as a storage area for minerals.
Each system plays a crucial role in maintaining homeostasis and the overall health and function of the body. They work in concert, although they are often studied individually for clarity and educational purposes.
The image presents three views of the human brain, each corresponding to a different anatomical plane, which are key references for viewing or imaging the body.
The first view on the left shows the transverse plane, a horizontal plane that divides the brain into superior (upper) and inferior (lower) parts. This view is akin to looking at a cross-section from the top, revealing structures such as the cerebral cortex, the white matter, and possibly the basal ganglia and lateral ventricles depending on the level of the section.
In the middle, the coronal plane is depicted. This vertical plane divides the brain into anterior (front) and posterior (back) sections. It's like viewing the brain from the front and can reveal the frontal lobes, parietal lobes, temporal lobes, and occipital lobes, as well as the division between the two hemispheres.
The third view, on the right, illustrates the sagittal plane. This vertical plane also divides the brain, but into left and right halves. The image shows a side view of the brain, which can reveal midline structures like the corpus callosum, the thalamus, and the cerebellum.
These anatomical planes are utilized in medical imaging, such as MRI and CT scans, to help healthcare professionals diagnose conditions, plan surgeries, and understand brain anatomy. Each plane provides a unique perspective and allows for the examination of different anatomical features of the brain.
| Anatomical Term | Definition | |||
|---|---|---|---|---|
| Sagittal Plane | A vertical plane that divides the body into right and left parts. | |||
| Coronal Plane | A vertical plane that divides the body into anterior (front) and posterior (back) parts. | |||
| Transverse Plane | A horizontal plane that divides the body into superior (upper) and inferior (lower) parts. | |||
| Anterior (Ventral) | Toward the front of the body. | |||
| Posterior (Dorsal) | Toward the back of the body. | |||
| Superior | Toward the head end of the body; above. | |||
| Inferior | Away from the head; below. | |||
| Cranial | Toward the head. | |||
| Caudal | Toward the lower part of the body or tail. | |||
| Medial | Nearer to the midline of the body. | |||
| Lateral | Farther from the midline of the body. | |||
| Proximal | Nearer to the point of attachment or to a given reference point. | |||
| Distal | Farther from the point of attachment or from a given reference point. |

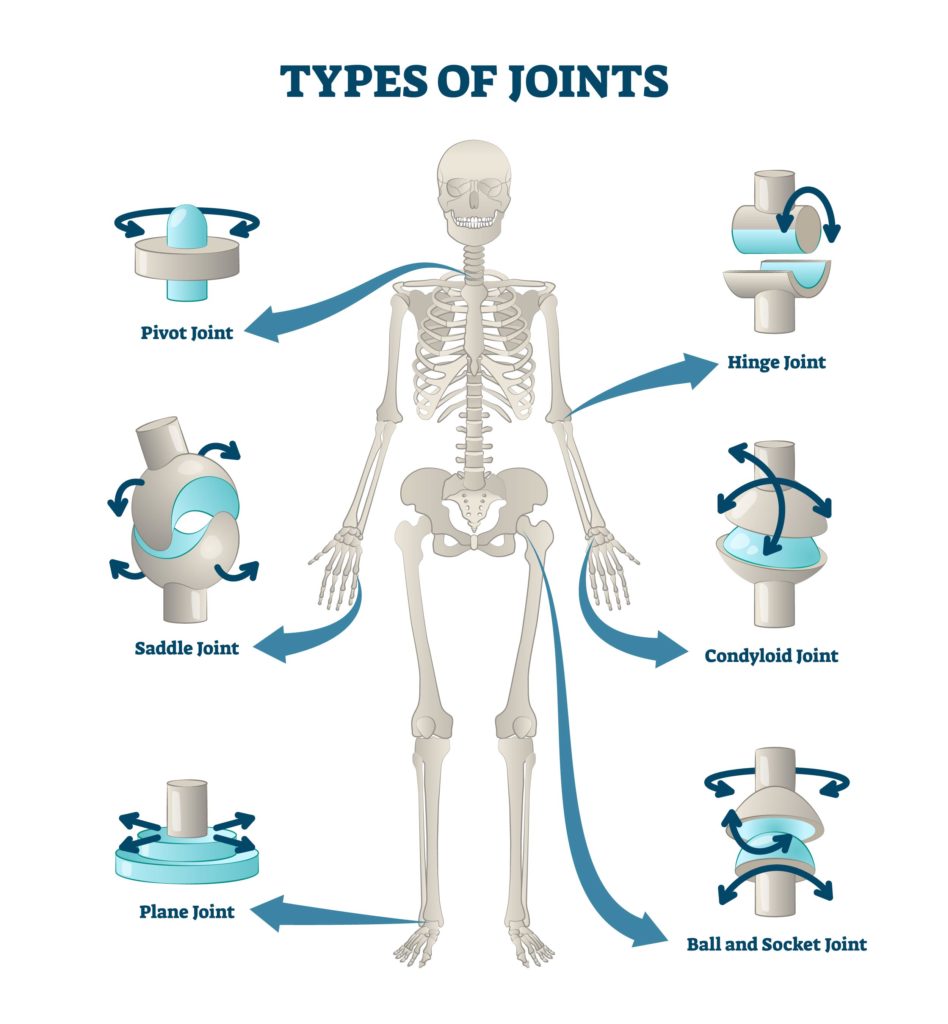

| Joint | Joint Type | |||
|---|---|---|---|---|
| Shoulder Joint | Ball-and-Socket | |||
| Elbow Joint | Hinge | |||
| Wrist Joint | Condyloid | |||
| Hip Joint | Ball-and-Socket | |||
| Knee Joint | Hinge | |||
| Ankle Joint | Hinge | |||
| Finger Interphalangeal Joints | Hinge | |||
| Thumb Carpometacarpal Joint | Saddle | |||
| Thumb Interphalangeal Joint | Hinge | |||
| Sternoclavicular Joint | Saddle | |||
| Acromioclavicular Joint | Plane | |||
| Radiocarpal Joint (Wrist) | Ellipsoidal | |||
| Ulnocarpal Joint (Wrist) | Ellipsoidal | |||
| Coxal Joint (Hip) | Ball-and-Socket | |||
| Tibiofemoral Joint (Knee) | Hinge | |||
| Tibiofibular Joint (Knee) | Plane | |||
| Ankle Joint (Talocrural) | Hinge | |||
| Metatarsophalangeal Joints (Toes) | Ellipsoidal | |||
| Interphalangeal Joints (Toes) | Hinge | |||
| Vertebral Facet Joints (Spine) | Plane | |||
| Temporomandibular Joint (TMJ) | Hinge and Gliding | |||
| Sutures in the Skull | Fibrous (Immovable) | |||
| Sacroiliac Joint (SI Joint) | Plane |
Shoulder Joint
Ball-and-Socket
Elbow Joint
Hinge
Wrist Joint
Condyloid
Hip Joint
Ball-and-Socket
Knee Joint
Hinge
Ankle Joint
Hinge
Finger Interphalangeal Joints
Hinge
Thumb Carpometacarpal Joint
Saddle
Thumb Interphalangeal Joint
Hinge
Sternoclavicular Joint
Saddle
Acromioclavicular Joint
Plane
Radiocarpal Joint (Wrist)
Ellipsoidal
Ulnocarpal Joint (Wrist)
Ellipsoidal
Coxal Joint (Hip)
Ball-and-Socket
Tibiofemoral Joint (Knee)
Hinge
Tibiofibular Joint (Knee)
Plane
Ankle Joint (Talocrural)
Hinge
Metatarsophalangeal Joints (Toes)
Ellipsoidal
Interphalangeal Joints (Toes)
Hinge
Vertebral Facet Joints (Spine)
Plane
Temporomandibular Joint (TMJ)
Hinge and Gliding
Sutures in the Skull
Fibrous (Immovable)
Sacroiliac Joint (SI Joint)
Plane
